Home » Product Info »
TAM58488

1/10 Sumo Power GT Nissan GT-R

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58488
1/10 Sumo Power GT Nissan GT-R
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$280.49
Warehouse ?
StockStock availability for pick up
0
$280.49
Warehouse ?
0
$280.49
Store - Charlottetown ?
0
$280.49
Store - Edmonton ?
0
$280.49
Store - Mississauga ?
0
$280.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Molybdenum Grease
$6.99

3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99
Body Set Zakspeed Capri GR5 Jagermeister Ford
$68.99

Body Mount Extension Set
$9.99

Steel Bevel Gears TA06 Gear Diff Unit
$22.99

E Parts Rear Upright TB03
$5.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

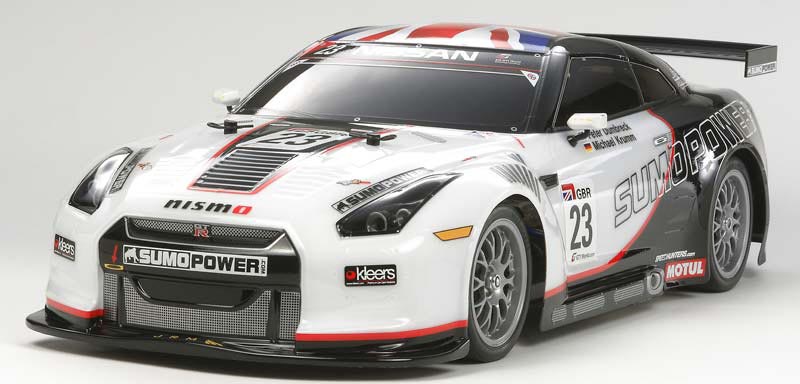

     This is the radio controlled, electric powered, 1/10 scale, on-road
Sumo Power GT Nissan GT-R Kit from Tamiya.

FEATURES: Chassis: TA06 plastic chassis with battery access on bottom
Drive: Four wheel, belt drive
Shocks: Oil-filled CVA Super Mini
Differentials: Planetary gear
Front Suspension: Inboard type that can be changed to an outboard
setup with included damper stay parts, all components from previous
TA05 chassis are transferable
Wheels: 0.94" (24mm) wide, 1.9" (48mm) gray in color with +2 offset
Tires: 24mm medium narrow slicks with inserts
Bumper: Front urethane
Spur Gear: Plastic 06 module, 68 tooth
Ball Bearings: Full set included
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: TA06 Chassis Kit with Wheels, Tires, Clear Body, Decals, Shocks,
Shock Oil and Instructions

REQUIRES: Radio: 2-channel with steering servo
Electronic Speed Control: To match selected motor
Motor: 540 size
Battery Pack: 7.2V 6-cell stick
Building and track equipment

SPECS: Vehicle;
Length: 14.6" (371mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)
Body;
Length: 17.25" (438mm)
Width: 7.5" (190mm)
Height: 4.1" (105mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 10x15mm Rear Diff 2 DTXC1595
2 5x10mm Gearbox 1 DTXC1535
2 4x8mm Gearbox 1 DTXC1511
2 10x15mm Front Diff 1 DTXC1595
2 3x7mm Steering Linkage 1 DTXC1506
2 3x6mm Steering Linkage 1 DTXC1503
4 5x8mm Front Stiffener 2 DTXC1523
2 4x8mm Center Pulley 1 DTXC1511
4 5x10mm Rear Axle 2 DTXC1535
4 5x10mm Front Axle 2 DTXC1535
2 3x6mm Motor Mount 1 DTXC1503

jxs 08/05/11
ir/jxs
4950344584222 4950344584222
TAMC8492
