Home » Product Info »
TAM58469

1/10 Ford Bronco 1973 Kit CC-01

RESOURCES

Items Required to Complete (4)
Replacement Parts (13)
Optional Items (5)
TAMIYA

TAM58469

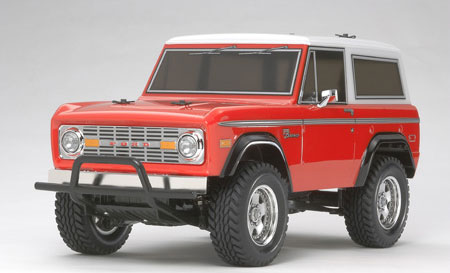

1/10 Ford Bronco 1973 Kit CC-01
By TAMIYA
$279.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail Truck Kit
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$279.99
Warehouse ?
Stock availability for pick up
0
$279.99
Warehouse ?
0
$279.99
Store - Charlottetown ?
0
$279.99
Store - Edmonton ?
0
$279.99
Store - Mississauga ?
0
$279.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • 1/10 R/C assembly kit of the Ford Bronco.
  • Length: 435mm.
  • Polycarbonate shell.
  • Front & Rear light cases and mirrors are all precisely reproduced with durable ABS resin.
  • Parts such as the front bumper and large-sized block tires with realistic tread pattern provide the model with a realistic scale presence.
  • Fully-enclosed front and rear gearboxes are equipped with differential gears for smooth cornering.
  • Metal-plated wheels included.
  • 4-wheel double wishbone suspension features oil dampers for excellent shock absorption.
  • LEDs to depict headlights (white) and taillights (red) are included.

The Ford Bronco is a famous American 4X4 off-road vehicle. This 1970's model was among the first series called "Early Bronco" which were produced during 1965-1977. Three types of bodies were released; the fully-open "Roadster," the single cabin pick-up "Utility," and the "Wagon" which had a resin roof. The body featured triangular protrusions on both sides on the curved front hood which worked well as a guide for drivers to accurately measure the body size while driving. The front suspension features coil springs combined with the rigid axle, which was a first for mass-produced 4X4 vehicles and works well both on-road and off-road. The Bronco is still greatly popular around the world, particularly in America, many are used as cross-country and rock crawling vehicles.

PRODUCT RESOURCES
VENDOR TECHNOTES
        This is the 1/10 scale electric powered, radio controlled, 4WD
1973 Ford Bronco Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Electronic Speed Control: TEU-104BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Oil-filled, black plastic construction
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: Five spoke chrome plated plastic, 1" (26mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya '73 Ford Bronco kit with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions
_
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15" (381mm)
Width: 7.3" (185mm)
Height: 5.3" (135mm)

COMMENTS: To paint body to match color scheme on box, order the following
Tamiya colors; PS-1 White, TAMR8601 PS-34 Bright Red, TAMR8634
PS-5 Black, TAMR8605 TS-17 Gloss Aluminum, TAMR5017

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 11/10/10
ir/jxs
4950344584697 4950344584697
TAMC8469
