TAM58467

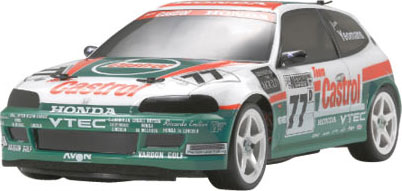

1/10 Castrol Honda Civic Vti FF03 FWD Kit

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (12)
Optional Items (6)
TAMIYA

TAM58467
1/10 Castrol Honda Civic Vti FF03 FWD Kit
By TAMIYA
$248.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$248.99
Warehouse ?
Stock availability for pick up
0
$248.99
Warehouse ?
0
$248.99
Store - Charlottetown ?
0
$248.99
Store - Edmonton ?
0
$248.99
Store - Mississauga ?
0
$248.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Polycarbonate body.
  • The newly designed FF-03 chassis features horizontally-placed front-motor and front wheeldrive 2WD system
  • Front-motor layout provides unique cornering characteristics specific to front wheel drive cars.
  • Short reversible suspension arms with inboard front suspension system.
  • Equipped with 1050 ball bearing specification uprights, front ball differential, and plastic CVA shock units.
  • Medium narrow 5-Spoke white wheels included.

The fifth generation Honda Civic (EG) was first released in 1991. It featured larger dimensions and a more aerodynamic body than its predecessors.

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the radio controlled, electric powered, 1/10 scale
Castrol Honda Civic VTi Kit from Tamiya.
This kit can be used in Tamiya Official Races.

FEATURES: Chassis: FF-03 bathtub type, composite construction
Drive: Front wheel
Motor: 540 size brushed
Wheels: Five-spoke 2" (52mm) diameter, 0.94" (24mm) wide, white in
color
Tires: Racing slicks with foam inserts, 0.94" (24mm) wide, 2.4"
(60mm) outer diameter
Bumper: Front urethane
Spur Gear: 68 tooth composite
Pinion Gear: 26 tooth metal
Body: Clear untrimmed, with protective coating on outside
Differential: Ball type
Steering: Bellcrank type equipped with ball bearings
Shocks: Oil-filled CVA plastic bodied
Suspension: IFS (Inboard Front Suspension) with short reversible
suspension arms and TRF416 uprights
Wheelbase: Kit can be assembled with long (10.1" 257mm), medium
(9.6" 245mm) or short (9.2" 233mm) wheelbase by altering the rear
assembly
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when when viewed from front or
behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: 1/10 scale Castrol Honda Civic CV VTi FF-03 Chassis Kit, wheels,
tires, foam inserts, decals, shock oil, spur gear, pinion gear,
motor and instruction manual

REQUIRES: Radio: 2-channel
Electronic Speed Control: For brushed motors
Paint: Spray or brush-on polycarbonate safe
Building and track equipment

SPECS: Chassis-
Length: 15.1" (384mm)
Width: 7.3" (185mm)
Tread: 6.2" (157mm) center of tires, side-to-side
Wheelbase: 10.1" (257mm)
9.6" (245mm)
9.2" (233mm)
Body-
Length: 16.1" (409mm)
Width: 6.8" (172mm)
Height: 3.8" (98mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x8mm Differential 1 DTXC1523
2 5x10mm Idler Gear 1 DTXC1535
1 4x8mm Counter Gear 1 DTXC1511
4 5x8mm Steering 2 DTXC1523
4 5x10mm Front Axles 2 DTXC1535
4 5x10mm Rear Axles 2 DTXC1535

jxs 07/26/10
ir/jxs
