TAM58457

1/10 Mercedes-Benz Unimog 406 Series U900 4WD Kit

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (14)
Optional Items (5)
TAMIYA

TAM58457
1/10 Mercedes-Benz Unimog 406 Series U900 4WD Kit
By TAMIYA
$259.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail Truck Kit
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$259.99
Warehouse ?
Stock availability for pick up
0
$259.99
Warehouse ?
0
$259.99
Store - Charlottetown ?
0
$259.99
Store - Edmonton ?
0
$259.99
Store - Mississauga ?
0
$259.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES

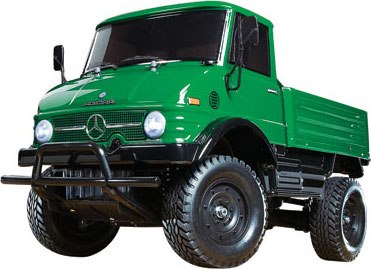

        This is the 1/10 scale electric powered, radio controlled, 4WD
Mercedes Benz Unimog 406 Series U900 Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Electronic Speed Control: TEU-104BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Oil-filled, black plastic construction
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction
Wheels: One-piece, black ABS resin wheels
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya Unimog 406 kit with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions
_
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 14.4" (365mm)
Width: 6.8" (173mm)
Height: 5.5" (140mm)

COMMENTS: To paint body to match color scheme on box, order the following
Tamiya colors;
PS-22 Racing Green TAMR8622 PS-31 Smoke TAMR8631
PS-5 Black TAMR8605 TS-43 Racing Green TAMR5043
X-18 Semi Gloss Black TAMR8118
For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 04/30/10
ir/jxs
4950344584574 4950344584574
