TAM58442

1/10 Team Studie GLAD BMW Z4 T

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (13)
Optional Items (3)
TAMIYA

TAM58442
1/10 Team Studie GLAD BMW Z4 T
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$191.24
Warehouse ?
Stock availability for pick up
0
$191.24
Warehouse ?
0
$191.24
Store - Charlottetown ?
0
$191.24
Store - Edmonton ?
0
$191.24
Store - Mississauga ?
0
$191.24
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

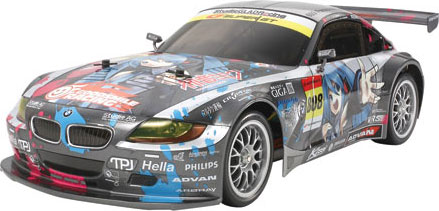

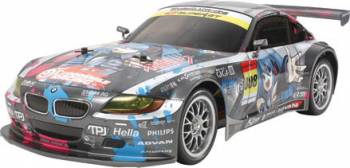

  • 1/10 R/C assembly kit of the Hatsune Miku Studie GLAD BMW Z4.
  • This model features the livery seen at the 2009 Super GT opening race at Okayama.
  • Polycarbonate body of the BMW Z4.
  • Includes side mirrors, rear wing, and metal-plated light cases.
  • Shaft driven 4-wheel drive TT-01 Type-E chassis.
  • Comes with slick tires snf BBS style mesh wheels.
  • 2 red and 2 yellow 5mm LEDs and LED Light Control Unit TLU-01 (Item 53909) included.
  • TEU-101BK ESC and type 540 motor included.
  • 2-channel R/C system, battery pack & charger are separately required.
  • Add the separately available LED Light Control Unit TLU-02 (Item 53937) to allow control of up to 16 pairs of LEDs (total 32 LEDs).
  • A wide variety of Option Parts are available.
PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the 1/10 scale electric powered, radio controlled,
Tamiya Hatsune Miku Studie GLAD BMW Z4 On-Road Car Kit.

FEATURES: Chassis: TT-01 type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount,
new A parts (Uprights) made of polycarbonate plastic material,
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Motor: 540 size with pre-attached leads
Electronic Speed Control: Tamiya TEU-101BK
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Friction, not oil-filled, composite body
Gearbox: Sealed front and rear
Differentials: Bevel gear
Transmission: Single speed
Tires: Racing slicks 1.02" (26mm) wide, 2.48" (63mm) diameter
Wheels: BBS style mesh 1.02" (26mm) wide, 2.04" (52mm) diameter,
gray in color
Body: Lightweight polycarbonate, requires trimming and painting
injection molded side mirrors and rear wing, decals with characters
from a popular Vocaloid series of Japanese anime
Bumpers: Foam front bumper
Suspension: Four wheel independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Fixed non-adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Steering: Bell-crank TA-05 type with servo saver
Servo Saver: Included

INCLUDES: Tamiya Team Studie Hatsune Miku GLAD BMW Z4 kit with friction shocks
540 motor, electronic speed control, clear body, tires, foam
bumper, wheels, 19 tooth pinion gear, 61 tooth spur gear,
instructions, LED light unit, window mask and body trim decals

REQUIRES: Radio: 2-channel with one steering servo
Battery: 6 cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Misc: Polycarbonate safe paint, building & track equipment

SPECS: VEHICLE-
Length: 17.5" (444mm)
Width: 7.4" (187mm)
Height: 5.2" (132mm)
BODY-
Length: 16.3" (415mm)
Width: 6.3" (161mm) in front of rear wheels, narrowest point
7.5" (190mm) at rear wheels, widest point
Height: 4.3" (109mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
more light effects, order TAMC1477.

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6-DTXC1547
4 8X12mm front & rear diff gears 2-DTXC1597

Body pictured on the box is painted Tamiya PS-23 Gunmetal (TAMR8623)
with all sponsor and anime decals applied.

jxs 10/06/09
ir/jxs
