TAM58436

1/10 4x4 Off Road '73 Bronco Kit CR-01

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (19)
Optional Items (3)
TAMIYA

TAM58436
1/10 4x4 Off Road '73 Bronco Kit CR-01
By TAMIYA
$529.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail Truck Kit
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$529.99
Warehouse ?
Stock availability for pick up
0
$529.99
Warehouse ?
0
$529.99
Store - Charlottetown ?
0
$529.99
Store - Edmonton ?
0
$529.99
Store - Mississauga ?
0
$529.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

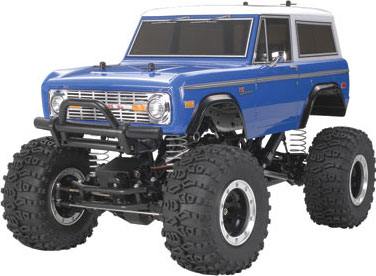

  • This is a 1/10 scale R/C assembly kit model of the Ford Bronco 1973.
  • Comes on the excellent CR-01 crawling chassis.
  • Newly designed metal plated H parts (Grille, side mirrors, and light covers) are made of durable ABS resin.
  • The Bronco comes equipped with CR-01 Cliff Crawler Tires (Item 54117).
  • Type 540 motor included.
  • A wide range of Hop Up parts are available for you to further customize your machine.

The Ford Bronco is a famous American 4X4 off-road vehicle. This 1970's model was among the first series called "Early Bronco" which were produced during 1965-1977. Three types of bodies were released; the fully-open "Roadster," the single cabin pick-up "Utility," and the "Wagon" which had a resin roof. The body featured triangular protrusions on both sides on the curved front hood which worked well as a guide for drivers to accurately measure the body size while driving. The front suspension features coil springs combined with the rigid axle, which was a first for mass-produced 4X4 vehicles and works well both on-road and off-road. The Bronco is still greatly popular around the world, particularly in America, many are used as cross-country and rock crawling vehicles.

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/10 scale
1973 Ford Bronco Truck Kit from Tamiya.

FEATURES: Chassis: CR-01 dedicated crawler chassis with heavy duty ladder frame
pressed aluminum channels and resin cross members
Drive: Four wheel shaft drive
Motor: 540 size
Ball Bearings: Full set included
Shocks: Oil-filled, compressed via pushrods and rocker arms
Gearbox: Planetary type with 20 tooth pinion gear for a 40.5:1 gear
ratio, separately available 16 - 25 tooth pinion gears for gear
ratios ranging from 50.6:1 - 32.4:1
Transmission: Single speed
Tires: Rock crawler type 4.9" (125mm) diameter, 2.2" (56mm) wide
with foam inserts
Wheels: Plastic 3-piece beadlock 2.8" (71mm) diameter, 1.4" (35.8mm)
wide, black in color
Body: Clear untrimmed polycarbonate
Bumper: High impact front plastic
Suspension: Four link long stroke coil spring front and rear
Differential: Planetary gear
Steering: Adjustable, direct link with servo saver

INCLUDES: CR-01 chassis with 20 tooth pinion gear, oil-filled shocks, 540
motor, 3-piece beadlock wheels, crawler tires, clear body, decals
spur gear, instructions

REQUIRES: Radio: 2-Channel with 1 Servo
Electronic Speed Control:
Radio Batteries: (8) AA size
Battery: 6-cell stick pack w/standard Tamiya connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Paint, building and track equipment

SPECS: VEHICLE-
Length: 17.1" (435mm)
Width: 10.3" (263mm)
Wheelbase: 11.3" (288mm)
BODY-
Length: 15" (381mm)
Width: 6.8" (172mm)
Height: 5.2" (133mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 8x12mm Link Mounts 2 DTXC1581
2 5x10mm Drive Shaft A 1 DTXC1535
2 5x10mm Drive Shaft B 1 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535
4 5x10mm Rear Uprights 2 DTXC1535
6 5x8mm Planetary Gears 3 DTXC1523
1 10x15mm Planetary Gears 1 DTXC1595

To paint body to match color scheme on box, order the following
Tamiya colors;
PS-1 Poly Spray White, TAMR8601
PS-5 Poly Spray Black, TAMR8605
PS-30 Poly Spray Brilliant Blue, TAMR8630

jxs 07/01/09
ir/jxs
