TAM58416

1/10 Rising Fighter Kit

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (8)
Optional Items (6)
TAMIYA

TAM58416

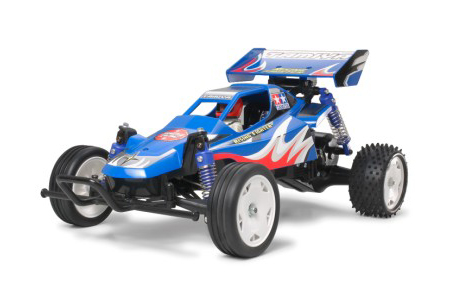

1/10 Rising Fighter Kit
By TAMIYA
$117.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$117.99
Warehouse ?
Stock availability for pick up
0
$117.99
Warehouse ?
0
$117.99
Store - Charlottetown ?
0
$117.99
Store - Edmonton ?
0
$117.99
Store - Mississauga ?
0
$117.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Length: 418mm, Width: 236mm, Height: 187mm, Wheel base: 268mm, Weight: 1000g.
  • Independent swing axles for the front suspension, a rolling rigid rear suspension, and large sized friction dampers effectively absorb shocks and bumps.
  • Bevel type diff gear.
  • Semi monocoque structure acts as the chassis strengthening part (Screws are used to secure the resin body to the bathtub chassis).
  • Fully enclosed gearbox preventing dirt and debris from interfering with operation.
  • Powered by a 540 motor (included).
  • Grooved front tires and rear spike tires ensure excellent traction for any surface.
  • Stylish resin molded body.
  • ESC included.
  • Running 7.2V battery & charger and 2-channel R/C system separately required.

The all terrain 2WD Rising Fighter inherits all its great qualities and excellent performance from its predecessors The Hornet (Item 58336) and The Grasshopper (Item 58346) and also uses a similar body to that of other fighter series R/C cars.

PRODUCT RESOURCES
VENDOR TECHNOTES
           This is the 1/10 scale radio controlled, electric powered
Tamiya Rising Fighter off-road Racing Buggy Kit.

FEATURES: Chassis: Monocoque plastic tub style chassis
Drive: Rear wheel drive
Body: ABS resin body and wing molded in blue, driver figure molded in
white
Speed Control: Tamiya TEU-101BK forward and reverse Electronic Speed
Control
Motor: 540 type
Plastic bushings
Shocks: Coil-over friction type with plastic bodies
Gearbox: Sealed rear gearbox
Differential: Bevel gear
Transmission: Single speed
Tires: Front, ribbed 1" (26mm) wide,
Rear, spike 1.5" (38mm) wide, both 3.2" (81mm) diameter
Wheels: White one-piece Front, 0.94" (24mm) wide
Rear, 1.4" (35mm) wide, both 2.4" (60mm) diameter
Bumper: Large black plastic front bumper
Suspension: Independent front A-arm and rear rolling rigid axle
Camber Tie Rods: fixed non-adjustable
Steering Tie Rods: adjustable
Steering: Two steering rods attach to the servo saver and knuckle arm

INCLUDES: Tamiya Rising Fighter rolling chassis w/friction shocks, 540 motor,
electronic speed control, molded body tires, wheels, 19 tooth 32
pitch pinion gear, 50 tooth counter gear, decal sheet and
building instructions.
_
REQUIRES: Radio: 2-Channel with 1 standard servo for steering
Radio Batteries: (8) AA size
Battery: 6-cell stick pack w/standard connector (7-cell won't fit)
Charger: AC/DC Timed or Peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.4" (418mm)
Width: 9.3" (236mm)
Height: 7.4" (187mm)
Weight: 2.2bs (1000g)
BODY-
Length: 10.6" (270mm)
Width: 5.8" (148mm) ahead of rear wheels (widest point)
2.2" (55mm) ahead of front wheels (thinnest point)
Height: 3" (76mm)

COMMENTS: To upgrade to ball bearings use;
Qty. Size Location Qty. Bearing Set
1 5x8mm Counter Gear 1 DTXC1523
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
4 5x11mm Front Hubs 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
To paint vehicle to match photos on box the following colors are
required;
TS44 Brilliant Blue, TAMR5044
X-18 Semigloss Black, TAMR1518
XF-15 Flat Flesh, TAMR1715
