1/10 Toyota Land Cruiser 40
click to enlarge

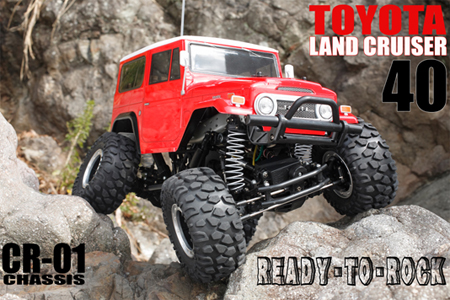

This new crawler features a true-to-scale Toyota Land Cruiser 40 body made from lightweight polycarbonate mounted on an all-new CR-01 chassis and is literally ready to rock.

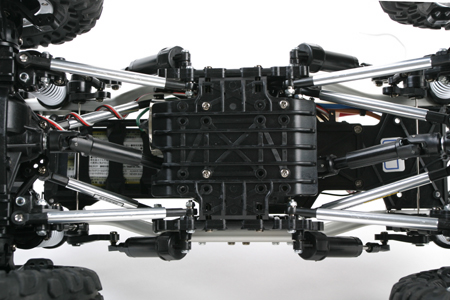

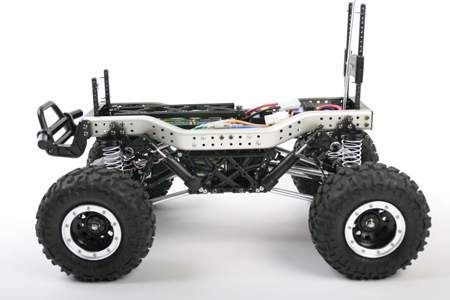

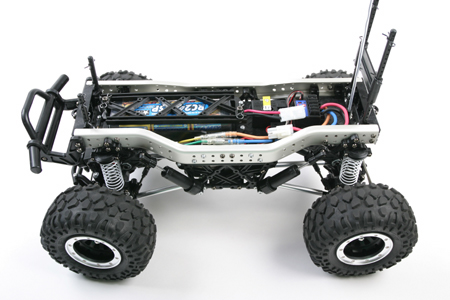

CR-01 dedicated crawler chassis features heavy-duty ladder frame with strong yet lightweight pressed aluminum channels and resin cross members. The space saved by mounting a compact planetary gearbox enables the battery to be located lower on the chassis for optimum center of gravity.
A planetary gearbox comes includes a 20T pinion gear for a 40.5:1 gear ratio. Separately available 16T-25T pinion gears can be installed for gear ratios ranging from 50.6:1 to 32.4:1. Kit also includes 540 type motor while 2-channel R/C system, ESC, and 7.2V battery & charger are required, but not included.

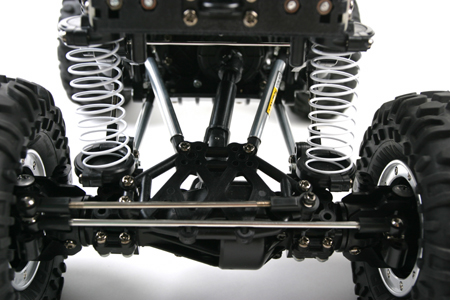

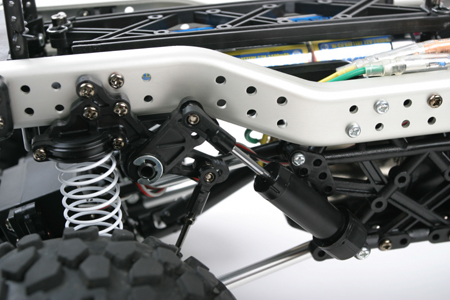

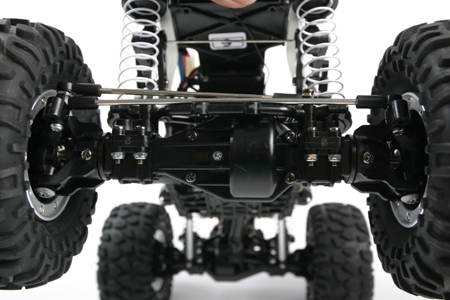

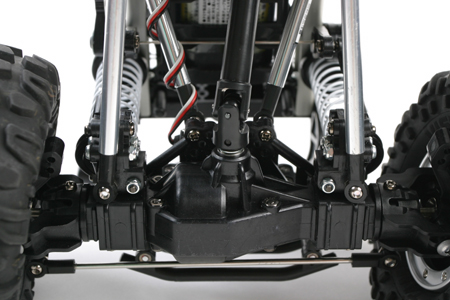

4-link coil spring suspension provides the flexibility needed to conquer difficult rocky terrain. Inboard dampers are connected to suspension via linkages, which are then connected via stabilizer torsion bar to provide sure-footed balance.

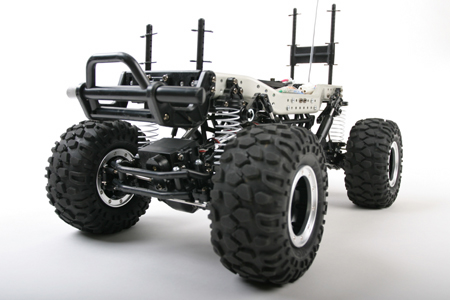

Newly designed 3-piece beadlock wheels are mounted with massive 125mmx56mm rock crawler tires. These work together with the suspension system to generate an impressive amount of ground clearance.
- Items Required to Complete (5)
- Substitutions (3)
- Replacement Parts (13)
- Upgrade and Hop-up Parts (2)
- Manual (PDF, 6.9 M)

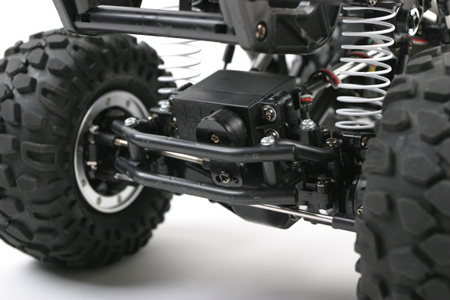

This is the electric powered, radio controlled, 1/10 scale Tamiya Toyota Land Cruiser Off Road Rock Crawler Truck Kit. FEATURES: Chassis: CR-01 dedicated crawler chassis with heavy duty ladder frame pressed aluminum channels and resin cross members Drive: Four wheel shaft drive Motor: 540 size Ball Bearings: Full set included Shocks: Oil-filled, compressed via pushrods and rocker arms Gearbox: Planetary type with 20 tooth pinion gear for a 40.5:1 gear ratio, separately available 16 - 25 tooth pinion gears for gear ratios ranging from 50.6:1 - 32.4:1 Transmission: Single speed Tires: Rock crawler type 4.9" (125mm) diameter, 2.2" (56mm) wide with foam inserts Wheels: Plastic 3-piece beadlock 2.8" (71mm) diameter, 1.4" (35.8mm) wide, black in color Body: Lightweight clear polycarbonate Bumper: High impact front plastic Suspension: Four link coil spring front and rear Differential: Planetary gear Steering: Adjustable, direct link with servo saver INCLUDES: Tamiya Toyota Land Cruiser Rock Crawler chassis with 20 tooth pinion gear, oil-filled shocks, 540 motor, 3-piece beadlock wheels, body, tires, decal sheet, spur gear, instructions REQUIRES: Radio: 2-Channel with 1 Servo Electronic Speed Control: Radio Batteries: (8) AA size Battery: 6-cell stick pack w/standard Tamiya connector Charger: AC/DC timed or peak for 6-cell battery Misc. Items: Paint, building and track equipment SPECS: VEHICLE- Length: 17" (435mm) Width: 10.43" (265mm) Height: 10.47" (266mm) Weight: 5.66lbs (2567g) approx. Wheelbase: 11.34" (288mm) Gear Ratio: 40.5:1 with supplied 20T pinion gear BODY- Length: 15" (381mm) Width: 7.25" (184mm) at rear wheels (widest point) Height: 6" (152mm) COMMENTS: For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set 4 8x12mm Link Mounts 2 DTXC1581 2 5x10mm Drive Shaft A 1 DTXC1535 2 5x10mm Drive Shaft B 1 DTXC1535 4 5x10mm Front Uprights 2 DTXC1535 4 5x10mm Rear Uprights 2 DTXC1535 6 5x8mm Planetary Gears 3 DTXC1523 1 10x15mm Planetary Gears 1 DTXC1595 To paint body to match color scheme on box, order the following Tamiya colors; PS-1 White TAMR8601 PS-34 Bright Red TAMR8634 PS-31 Smoke TAMR8631 PS-5 Black TAMR8605 jxs 2/18/08 ir/jxs
