TAM57984

1/10 TT02 Chassis Factory Finished

RESOURCES

Items Required to Complete (3)
Replacement Parts (9)
Optional Items (6)
TAMIYA

TAM57984
1/10 TT02 Chassis Factory Finished
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$239.99
Warehouse ?
Stock availability for pick up
0
$239.99
Warehouse ?
0
$239.99
Store - Charlottetown ?
0
$239.99
Store - Edmonton ?
0
$239.99
Store - Mississauga ?
0
$239.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

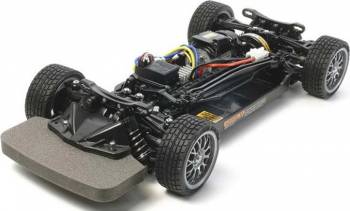

         This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02 Factory Finished Semi Assembled On-Road Chassis from Tamiya.

FEATURES: Chassis: Plastic, TT-02
Drive: Four wheel drive, dogbone
Motor: 540 size brushed
Radio: Tamiya TTU-08 Finespec FHSS 2.4GHz pistol grip with
preinstalled steering servo
ESC: TEU-105BK with reverse
Differential: Gear type
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Wheels: 1.02" (26mm) wide, 1.9" (49mm) diameter, 12mm hex
Tires: Treaded rubber 2.5" (65mm) diameter, 1.02" (26mm) wide
Steering: Bellcrank type
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Factory Finished On-Road Chassis with Brushed Motor, ESC,
2.4GHz Radio, and Instruction Manual

REQUIRES: Battery: 7.2V stick pack with standard connector
Battery Charger: Compatible with selected battery pack
AA Batteries: Four for transmitter
Body: 190mm touring car or sports car body (Tamiya TT-01, TT-02,
and TT-01 Type E bodies are compatible)
Track and maintenance equipment

SPECS: Specs such as length, width, height and weight not provided by
manufacturer
Wheelbase: 9.9-10.1" (251-257mm) adjustable

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 08/09/13
ir/jxs
