TAM57898

XB Mercedes-Benz G 320 MF-01X Cabrio RTR

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (10)
Optional Items (3)
TAMIYA

TAM57898
XB Mercedes-Benz G 320 MF-01X Cabrio RTR
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Monster Trucks
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$427.99
Warehouse ?
Stock availability for pick up
0
$427.99
Warehouse ?
0
$427.99
Store - Charlottetown ?
0
$427.99
Store - Edmonton ?
0
$427.99
Store - Mississauga ?
0
$427.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

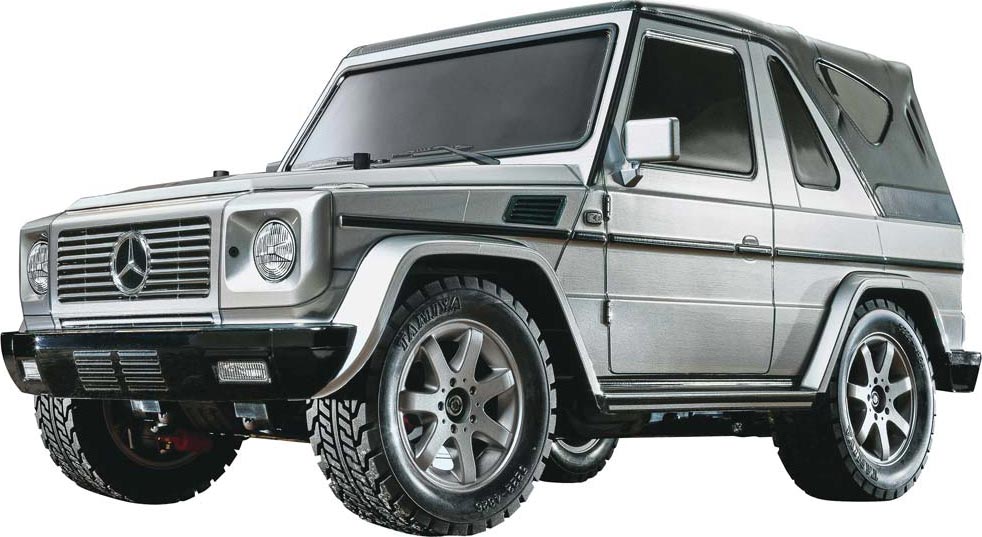

               This is the Radio Controlled, Electric Powered,
Ready to Run Mercedes-Benz G 320 Cabrio Off Road Vehicle from Tamiya.

FEATURES: Chassis: MF-01X three-piece resin monocoque, compatible with
existing M-chassis bodies
Drive: Four wheel, gear driven rear wheels, dogbone with driveshaft
driven front wheels
Motor: Torque tuned brush equipped 540 size
Radio: Tamiya Finespec 2.4GHz with steering and throttle trim and
reverse
Electronic Speed Control: TEU105-BK with Tamiya type connector
Suspension: Four wheel independent double wishbone
Differential: Gear type
Tires: Rally block 1.06" (27mm) wide, 2.7" (69mm) diameter
Wheels: 1.02" (26mm) wide, 1.9" (48mm) diameter, 5-spoke, matte
chrome finish
Body: Painted and finished polycarbonate
Shocks: Friction, plastic body CVA
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
Steering: Bellcrank type

INCLUDES: RTR Mercedes-Benz G 320 Cabrio, with 540 Brushed Motor, ESC, Tires
Wheels, Shocks, Painted Body, Decals, Instruction Manual, 16T
anual, 16T Pinion Gear

REQUIRES: AA Batteries: Four for transmitter
Battery: 6-cell NiMH with Standard connector
Battery Charger: To match selected battery
Tools, polycarbonate safe paint, track equipment

SPECS: Wheelbase: 9.4" (239mm)
Length: 15.1" (385mm)
Width: 7" (178mm)
Height: 6.9" (175mm)
Body-
Length: 15.4" (391mm)
Width: 6.9" (175mm)
Height: 5.5" (140mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Gearbox 1 DTXC1547
2 5x11mm Rear Gearbox 1 DTXC1547
2 5x8mm Driveshaft 1 DTXC1523
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Wheels 1 DTXC1547
