PRODUCT RESOURCES
VENDOR TECHNOTES

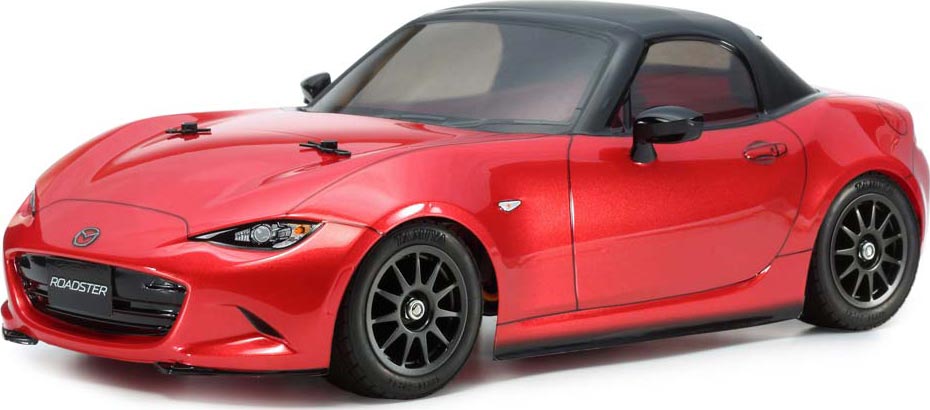

      This is the Electric Powered, 2.4GHz Radio Controlled, 1/10 scale
Ready to Run Mini Mazda Roadster On-Road Vehicle from Tamiya.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: M-05 M resin monocoque design
Drive: Front wheel
Suspension: Four wheel independent double wishbone
Gearbox: Fully enclosed
Motor: 540 brushed
Radio: Tamiya Finespec 2.4GHz
ESC: TEU-105BK with reverse
Transmission: Single speed, ball bearing equipped
Differential: Three bevel gear
Body: Painted polycarbonate, separate side mirrors
Shocks: Plastic body friction type
Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diameter
with foam inserts
Wheels: 0.94" (24mm) wide, 1.5" (38mm) diameter
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Three piece tie-rod linkage

INCLUDES: RTR Mazda Roadster On-Road Vehicle with Motor, Radio, ESC, Body
Decals and Instruction Manual

REQUIRES: Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: To match selected battery
AA Batteries: Eight for transmitter
Track and maintenance equipment

SPECS: Vehicle;
Length: 14.8" (376mm)
Width: 6.7" (170mm)
Height: 5.6" (142mm)
Wheelbase: 8.8" (225mm)
Tread: 5.4" (138mm) center of wheels, side-to-side
Body;
Length: 14.7" (373mm)
Width: 6.3" (160mm)
Height: 4.2" (107mm)

COMMENTS: For Replacement or to Upgrade To Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Differential 2 DTXC1547
4 5x11mm Fr Hubs 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
2 5x8mm Steering 1 DTXC1523
2 5x8mm Differential 1 DTXC1523
