TAM57880

XB Toyota Land Cruiser 40 GF-01 RTR

Product Info | Optional Items
TAMIYA

TAM57880
XB Toyota Land Cruiser 40 GF-01 RTR
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Monster Trucks
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$429.99
Warehouse ?
StockStock availability for pick up
0
$429.99
Warehouse ?
0
$429.99
Store - Charlottetown ?
0
$429.99
Store - Edmonton ?
0
$429.99
Store - Mississauga ?
0
$429.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Alum Servo Lowering Guard GF-01
$27.99

Alum Hub Carrier 8 Degs GF01/WR02
$55.99

Alumimum Oil Damper GF-01 (4)
$64.99

SS Susp Shaft Alum Bridge GF01/WR02
$12.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

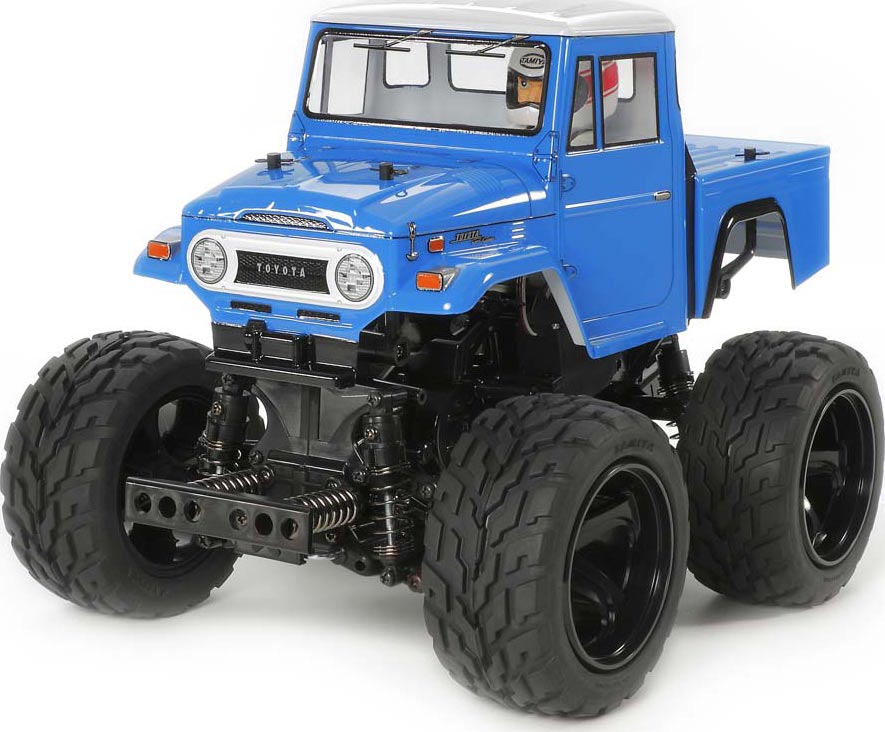

      This is the Tamiya 1/12 scale Electric Powered, Radio Controlled,
Ready to Run Toyota Land Cruiser 40 Pickup Truck.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: GF-01 plastic monocoque type with rear wheelie bar
Drive: Four wheel with dogbones
Motor: 540 brushed
Radio: Finespec 2.4GHz
Electronic Speed Control: Tamiya TEU105BK
Differentials: Front and rear in sealed gearbox integrated into frame
Body: Painted polycarbonate, with helmeted driver figure
Suspension: Fully independent double wishbone
Shocks: Plastic body friction
Steering: Bellcrank type
Tires: V-pattern rubber with foam inserts
Wheels: 5-spoke plastic 1.8" (47mm) wide, 2.6" (67mm) diameter
Bumper: Front spring loaded
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: RTR Toyota Land Cruiser 40 Pickup Truck with ESC, Motor, Painted Body
Driver Figure, Tires, Wheels, Shocks, 2.4GHz Radio and
Instruction Manual

REQUIRES: Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: Four for transmitter

SPECS: Vehicle;
Length: 13.1" (333mm)
Width: 9.6" (244mm)
Height: 9.5" (242mm)
Body;
Length: 12.1" (308mm)
Width: 5.7" (146mm)
Height: 4.8" (123mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Differential 1 DTXC1547
8 5x11mm Counter Gears 4 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
4 5x11mm Rear Uprights 2 DTXC1547
2 5x8mm Steering Linkage 1 DTXC1523

jxs 02/03/15
ir/jxs
