PRODUCT RESOURCES
VENDOR TECHNOTES

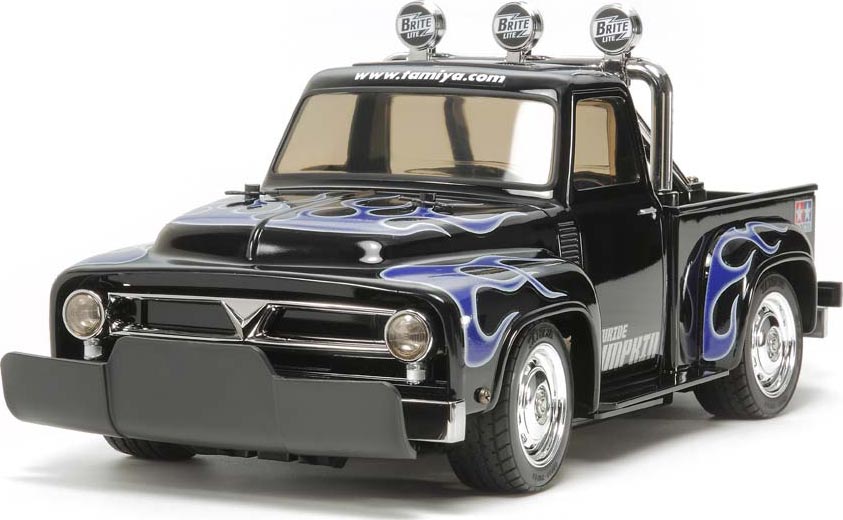

   This is the 1/10 scale electric powered, radio controlled, ready to run
XB Ready to Run Lowride Pumpkin from Tamiya.

FEATURES: Chassis: M-06, constructed of plastic
Drive: Rear wheel
Motor: 540 size brushed
Radio: 2.4GHz Tamiya Finespec 2-ch pistol grip with standard steering
servo
Electronic Speed Control: Tamiya TEU-105BK with BEC
Shocks: Friction, not oil-filled, composite body
Gearbox: Sealed
Differential: Bevel gear
Transmission: Single speed
Tires: 60D Super Grip radial type 1.02" (26mm) wide, 2.4"
(60mm) diameter, inner foam
Wheels: Plastic disc type
Body: ABS plastic
Bumper: Foam front bumper
Suspension: Four wheel independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: RTR Tamiya Lowride Pumpkin, friction shocks, 540 motor, electronic
speed control, painted body, tires, foam bumper, wheels, 20 tooth
pinion gear, spur gear, instructions, 2-ch 2.4GHz radio, steering
servo and instructions

REQUIRES: Battery: 6 cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
AA Batteries: Eight for transmitter
Track equipment

SPECS: VEHICLE-
Length: 13.8" (350mm)
Width: 6.5" (165mm)
Wheelbase: 9.4" (239mm)
BODY-
Length: 14.1" (360mm)
Width: 6.6" (167mm)
Height: 5.6" (142mm) measured at light bar

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
4 5x8mm Steering 2 DTXC1523

jxs 04/07/15
ir/jxs
