TAM57873

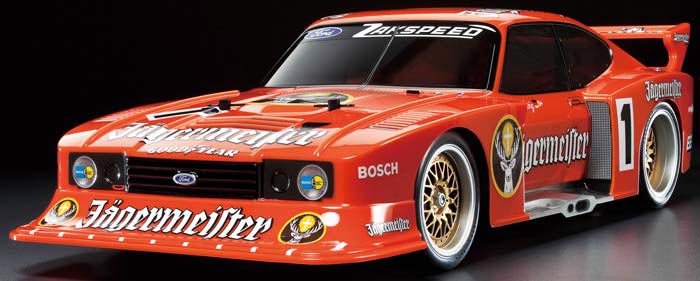

1/10 XB RC RTR Zakspeed Capri Gr.5 Jagermeister

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (7)
Optional Items (11)
TAMIYA

TAM57873
1/10 XB RC RTR Zakspeed Capri Gr.5 Jagermeister
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road 4WD Touring Sedan
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$348.49
Warehouse ?
Stock availability for pick up
0
$348.49
Warehouse ?
0
$348.49
Store - Charlottetown ?
0
$348.49
Store - Edmonton ?
0
$348.49
Store - Mississauga ?
0
$348.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the radio controlled, electric powered 1/10 scale,
Ready to Run Zakspeed Capri Gr.5 Jagermeister Ford On-Road Car.

FEATURES: Chassis: TT-01 type E composite chassis-compatible with a variety of
Tamiya Option Parts
Drive: Four wheel shaft drive
Radio: Tamiya Finespec 2.4GHz pistol grip
Electronic Speed Control: Tamiya TEU-105BK with reverse
Motor: 540 motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, bushing equipped
Transmission: Single speed
Body: Painted and trimmed
Tires: Slick rubber 1.0" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: Gold lace pattern with silver outer rim, 2.0" (52mm) outer
diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Zakspeed Capri Gr.5, 540 motor, ESC, clear body, tires, foam bumper,
19 tooth pinion gear, 61 tooth spur gear, window mask decals,
wheels, 2.4GHz radio, and instruction manual

REQUIRES: Radio Batteries: 4 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 15.7" (400mm)
Width: 7.2" (183mm)
Height: 5.5" (140mm)
Wheelbase: 10.1" (257mm)
BODY-
Length: 17.7" (450mm)
Width: 8.2" (209mm) at widest point
Height: 4.2" (106mm)

COMMENTS: For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

jxs 02/06/14
ir/jxs
