TAM57872

1/10 XB RC RTR Neo Fighter Buggy (DT03)

RESOURCES

Items Required to Complete (3)
Replacement Parts (4)
Optional Items (1)
TAMIYA

TAM57872

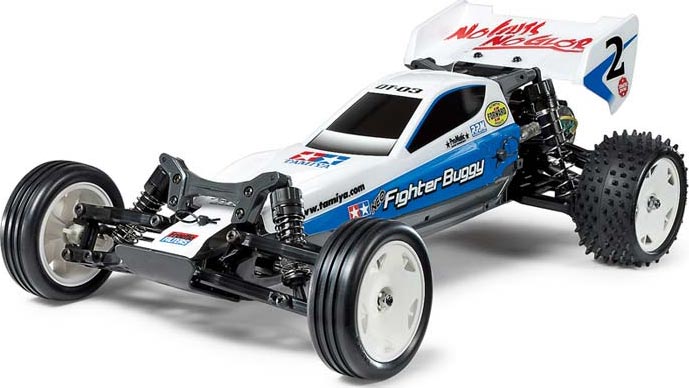

1/10 XB RC RTR Neo Fighter Buggy (DT03)
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 2WD Buggy
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$296.99
Warehouse ?
Stock availability for pick up
0
$296.99
Warehouse ?
0
$296.99
Store - Charlottetown ?
0
$296.99
Store - Edmonton ?
0
$296.99
Store - Mississauga ?
0
$296.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the 1/10 scale, radio controlled, electric powered,
ready to run XB Neo Fighter Buggy.
For ages 14 and above.

FEATURES: Chassis: DT-03 plastic monocoque
Drive: Rear wheel
Radio System: Tamiya Finespec 2.4GHz pistol grip with steering and
throttle trim and reverse and steering servo
Electronic Speed Control: Tamiya TEU-105BK with reverse (TAMC5055)
Motor: 540 brushed, preinstalled to assembled gearbox
Suspension: Four wheel double wishbone
Differential: Bevel gear
Body; Painted polycarbonate
Driver Figure: Painted plastic
Shocks: Coil over plastic body friction, not oil-filled
Wheels: White plastic star dish design
Tires: Front, grooved
Rear, pin spike
Steering: Direct servo with tie rods
Front Bumper: Spring type to absorb minor impacts
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: RTR Tamiya Neo Fighter Buggy with brushed motor, ESC, painted body,
Rear Wing, 17T pinion gear, tires, wheels, shocks, decal sheet,
2.4GHz Radio and instruction manual

REQUIRES: Battery: 7.2V stick pack with standard connector
Battery Charger: To match selected battery
AA batteries: Four for transmitter
Track and Maintenance equipment

SPECS: Vehicle-
Length: 16" (406mm)
Width: 9-5/8" (245mm) at widest point
Weight: 2lbs 6oz without electronics or battery
Ground Clearance: 1" (25.4mm) w/about 1/2" (12.7mm) adjustability
Body-
Length: 11.4" (289mm)
Width: 3.5" (90mm)
Height: 2.5" (64mm)

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
8 5x11mm Front Uprights 4 DTXC1547

jxs 02/04/14
ir/jxs
4950344578726 4950344578726
TAMC7872
