TAM57871

1/10 XB RC RTR Tumbling Bull (WR02G)

Product Info | Replacement Parts
RESOURCES

Replacement Parts (9)
TAMIYA

TAM57871
1/10 XB RC RTR Tumbling Bull (WR02G)
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 2WD Monster Truck
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$389.99
Warehouse ?
Stock availability for pick up
0
$389.99
Warehouse ?
0
$389.99
Store - Charlottetown ?
0
$389.99
Store - Edmonton ?
0
$389.99
Store - Mississauga ?
0
$389.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

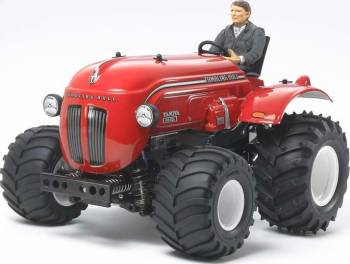

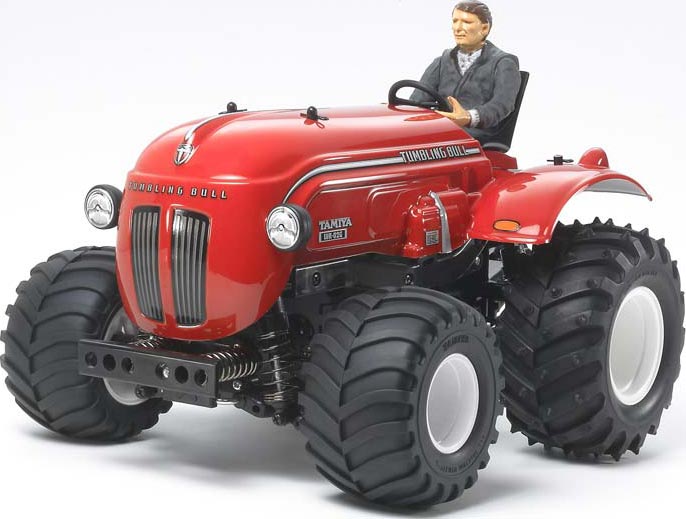

          This is the 1/10 scale, radio controlled, electric powered,
ready to run Tamiya Tumbling Bull Tractor
For ages 14 and above
From Tamiya's XB Pro Expert Built Series

FEATURES: Chassis: WR-02G monocoque with wheelie bar
Drive: Rear wheel
Radio System: Tamiya Finespec 2.4GHz pistol grip with steering and
throttle trim and reverse and steering servo
Electronic Speed Control: Tamiya TEU-105BK with reverse (TAMC5055)
Motor: 540 brushed, preinstalled to assembled gearbox
Suspension: Four wheel double wishbone
Differential: Bevel gear
Body; Painted polycarbonate, classic tractor style with instrument
and body trim decals
Driver Figure: Fully detailed injection molded painted plastic
Shocks: Coil over plastic body friction, not oil-filled
Wheels: White plastic
Tires: Rubber, front; chevron tread, rear; chevron tread with spikes
Steering: Direct servo with tie rods
Front Bumper: Spring type to absorb minor impacts
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: RTR Tamiya Tumbling Bull with brushed motor, ESC, painted body,
18T pinion gear, tires, wheels, shocks, decal sheet, 2.4GHz radio
and instruction manual

REQUIRES: Battery: 7.2V stick pack with standard connector
Battery Charger: To match selected battery
AA batteries, paint, building and track equipment

SPECS: Vehicle-
Length: 14.3" (363mm)
Width: 9.9" (253mm)
Height: 9.6" (245mm)
Body-
Length: 11.4" (290mm)
Width: 7.8" (198mm) measured at rear fenders, widest point
Height: 2" (51mm)

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
7 5x11mm Gearbox 4 DTXC1547

jxs 02/04/14
ir/jxs
4950344578719 4950344578719
TAMC7871
