TAM57867

1/10 XB Neo Scorcher TT02B

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (7)
Optional Items (4)
TAMIYA

TAM57867
1/10 XB Neo Scorcher TT02B
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 2WD Buggy
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$280.49
Warehouse ?
Stock availability for pick up
0
$280.49
Warehouse ?
0
$280.49
Store - Charlottetown ?
0
$280.49
Store - Edmonton ?
0
$280.49
Store - Mississauga ?
0
$280.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

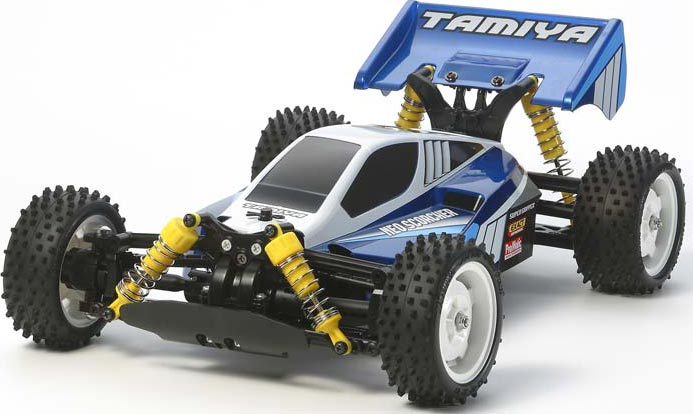

          This is the 1/10 scale, Radio Controlled, Electric Powered
RTR Tamiya XB Neo Scorcher Buggy.

FEATURES: Chassis: TT-02B plastic bathtub type
Drive: Four wheel shaft
Radio: Tamiya Finespec 2.4GHz
Motor: 540 RS torque tuned brushed
ESC: Tamiya TEU-105BK with reverse
Body: Polycarbonate construction, painted and trimmed
Differentials: Bevel Gear
Tires: Pin spike rubber
Wheels: White plastic
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis

INCLUDES: Tamiya XB Neo Scorcher Buggy, 2.4GHz Radio, 540 Motor, ESC, Painted
Body, Rear Wing, Instruction Manual

REQUIRES: Battery: 7.2V 6-cell stick pack
Battery Charger: For selected battery
AA Batteries: Eight for transmitter
Track and maintenence equipment

SPECS: Vehicle:
Length: 15" (380mm)
Width: 9.5" (241mm)
Wheelbase: 10.5" (266mm)
Body:
Length: 10.2" (260mm)
Width: 5.5" (140mm)
Height: 3.0" (76mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x11mm Fr Uprights 1 DTXC1547
2 5x11mm Rear Uprights 1 DTXC1547

jxs 09/04/13
ir/jxs
4950344578672 4950344578672
TAMC5786
