TAM57865

1/10 XB RTR Sand Rover DT02

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (5)
Optional Items (2)
TAMIYA

TAM57865
1/10 XB RTR Sand Rover DT02
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 2WD Buggy
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$275.39
Warehouse ?
Stock availability for pick up
0
$275.39
Warehouse ?
0
$275.39
Store - Charlottetown ?
0
$275.39
Store - Edmonton ?
0
$275.39
Store - Mississauga ?
0
$275.39
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

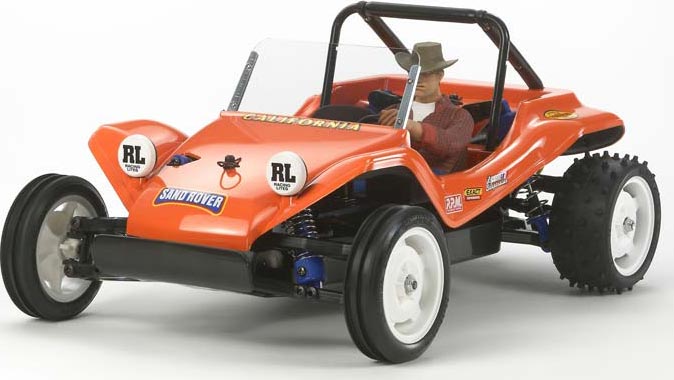

      This is the Electric Powered, 2.4GHz Radio Controlled, 1/10 scale
Ready to Run Sand Rover Off-Road Vehicle from Tamiya.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: DT-02 ABS bathtub type
Drive: Rear wheel with front swing axle
Suspension: Rolling rigid type
Gearbox: Fully enclosed
Motor: 540 brushed with 10 tooth pinion gear
Radio: Tamiya 2-channel Finespec 2.4GHz pistol grip
ESC: TEU-105BK with BEC
Body: Molded styrene, orange in color with decals, clear
windshield, seats, dash decal, roll bar, and painted driver figure
Bumper: Front, flexible plastic
Tires: Rubber, front ribbed, rear spiked
Wheels: White plastic
Shocks: Plastic body friction (not oil filled)
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: RTR Sand Rover Off-Road Buggy with Motor, Radio, ESC, Body
and Instructions

REQUIRES: Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: To match selected battery
AA Batteries: Eight for transmitter
Track and maintenance equipment

SPECS: Vehicle-
Length: 15.1" (384mm) including bumper
Width: 9.5" (241mm)
Height: 6.6" (168mm)
Body-
Length: 14.6" (370mm)
Width: 7.6" (194mm) at widest point
Height: 4.1" (104mm)

COMMENTS: For Replacement or to Upgrade To Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Gearbox 2 DTXC1547
1 5x8mm Gearbox 1 DTXC1523
4 5x11mm Fr Wheels 2 DTXC1547

jxs 10/15/13
ir/jxs
4950344578658 4950344578658
TAMC7865
