TAM56346

1/14 Man TGX 26.540 6X4 XLX Gun Metal Edition

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (1)
Optional Items (1)
TAMIYA

TAM56346
1/14 Man TGX 26.540 6X4 XLX Gun Metal Edition
By TAMIYA
$529.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Freight Truck & Trailer Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$529.99
Warehouse ?
Stock availability for pick up
0
$529.99
Warehouse ?
0
$529.99
Store - Charlottetown ?
0
$529.99
Store - Edmonton ?
0
$529.99
Store - Mississauga ?
0
$529.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
526 mm
Length:
193 mm
Width:
298 mm
Height:
Rear Wheel Drive
Drivetrain:
1/14
Scale:

FEATURES
  • Ladder frame with aluminum channels and resin cross members
  • Tilt forward operation just like full-size truck
  • Removable fenders to depict a low carrying load
  • Shaft driven from front mounted motor to rear axles which are equipped with differentials
  • Molded gray ABS plastic cab

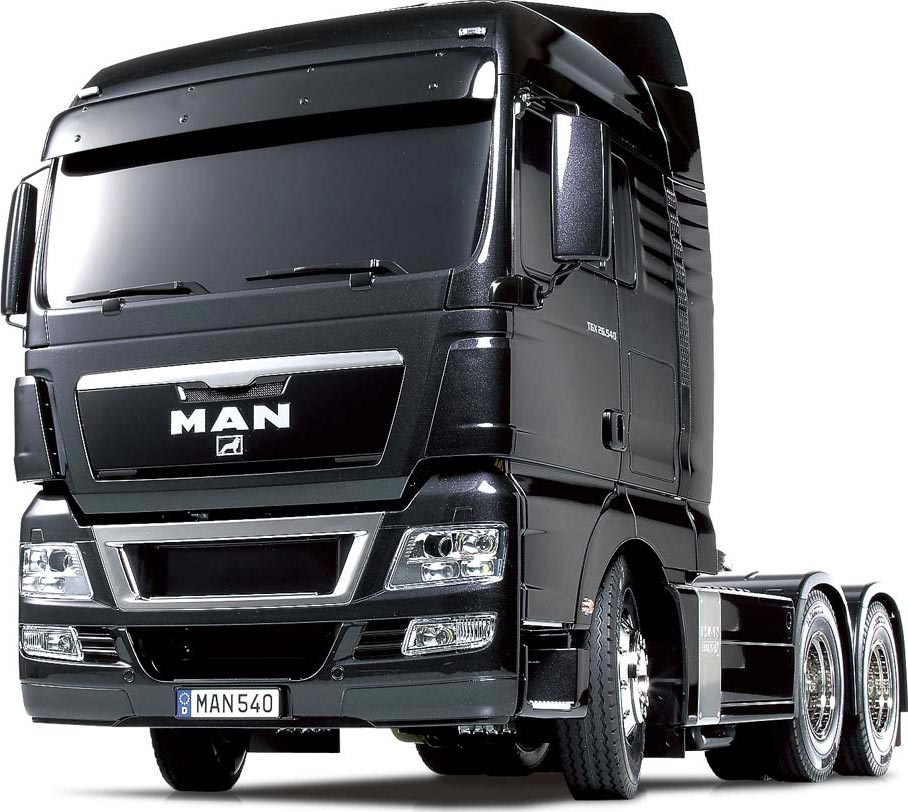

This is the electric powered, radio controlled, 1/14 scale Gun Metal Edition Tamiya Man TGX 26.540 6x4 XLX Tractor Truck kit. Compatible with the Tamiya Tractor Truck Option Parts for further customization.


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/14 scale
Gun Metal Edition Tamiya Man TGX 26.540 6x4 XLX Tractor Truck kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.

FEATURES: Chassis: Ladder frame with aluminum channels and resin cross members
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540 brushed
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Cab: Molded gray ABS plastic, painted in Gun Metal gray (Tamiya
color TS-38), cab tilts forward separately from fenders, clear
plastic windows, separate grille, mirrors, seats dashboard and
other accessories add to realism
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

INCLUDES: 1/14 scale Tamiya TGX 26.540 6x4 XLX semi kit, 540 motor, tires,
wheels, decal sheet, 3-speed transmission, instructions and coupler
unit for trailer (trailer not included)

REQUIRES: Radio: 4-channel with 4-channel receiver
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment

SPECS: Length: 20.7" (526mm)
Width: 7.6" (193mm)
Height: 11.7" (298mm)
Wheelbase: 10.7" (272mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66

COMMENTS: The Tamiya Multi Function Control Unit (TAMC6511) not included,
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an 2.4Ghz type radio only with
analog trims such as the Tamiya 4YWD, TAMJ5252.
