TAM56335

1/14 Mercedes-Benz Actros 1851

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (4)
Optional Items (19)
TAMIYA

TAM56335
1/14 Mercedes-Benz Actros 1851
By TAMIYA
$569.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Freight Truck & Trailer Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$569.99
Warehouse ?
Stock availability for pick up
0
$569.99
Warehouse ?
0
$569.99
Store - Charlottetown ?
0
$569.99
Store - Edmonton ?
0
$569.99
Store - Mississauga ?
0
$569.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Length: 458mm, Width: 195mm, Height: 305mm.

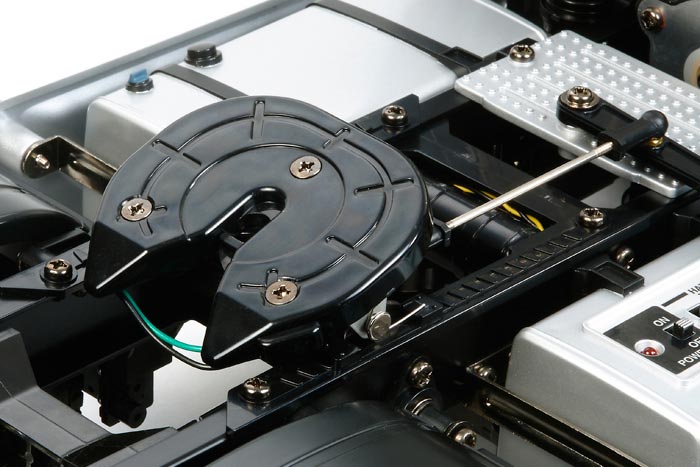

  • Ladder frame chassis can be linked with a semi-trailer via coupler.
  • Highly-realistic suspension recreated with metal leaf springs and friction dampers.
  • Built-in differential gears enable smooth cornering.
  • LEDs can be used to accurately recreate the truck?s front and rear lights. (Sold Separately)
  • Float-mounted die-cast front axle and reinforced resin rear axle

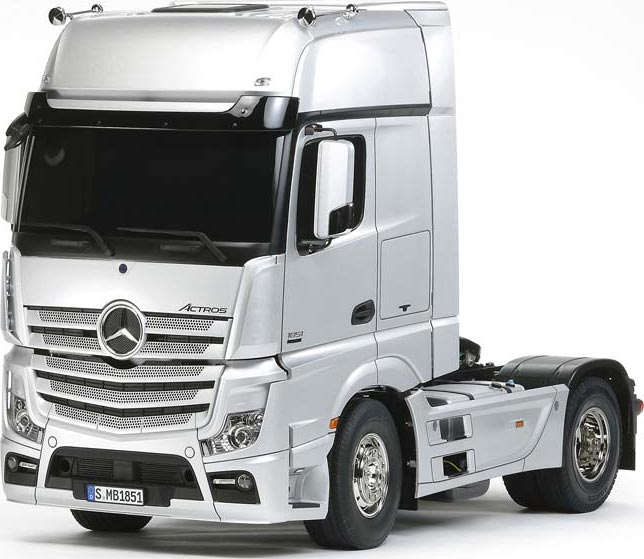

The 2012 Truck of the Year award-winning Actros series is the flagship of the worlds leading truck manufacturer, Daimler. Its latest installment, the rear-wheel drive Actros 1851 GigaSpace runs on a 12.8-liter 6-cylinder turbo-charged engine generating 510hp and is used for long-distance haulage, heavy duty distribution haulage, construction haulage and so on.

The Tamiya 1/14 scale R/C kit faithfully captures all the detail of the full size rig using ABS plastic for the body parts and a 3-speed, shift on the fly working transmission.


VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/14 scale
Tamiya Mercedes Benz Actros 1851 GigaSpace Tractor Truck kit with Body
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.

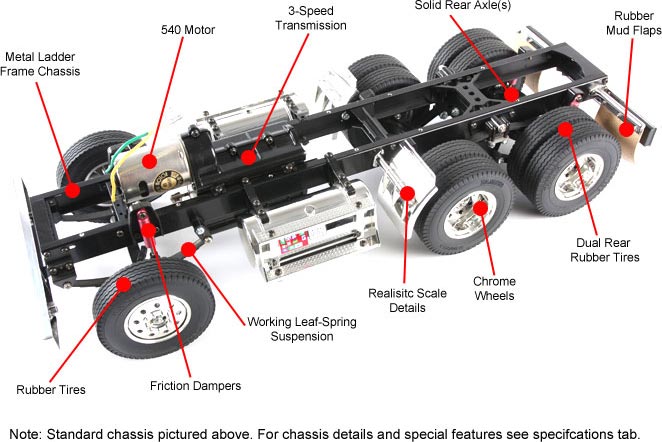

FEATURES: Chassis: Ladder frame with aluminum channels and resin cross members
Body: ABS molded plastic
Drive Train: Two solid axle semi
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540 brushed
Pinion Gear: 10 tooth

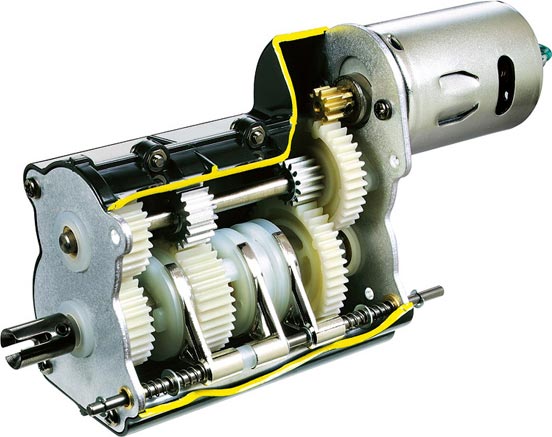

Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Cabin: Molded plastic, white in color tilts forward separately from
fenders, clear plastic windows, separate grille, mirrors and
other accessories add to realism
Wheels: Chrome plated plastic
Tires: Six, treaded rubber radial

INCLUDES: 1/14 scale Tamiya Mercedes Benz Actros, 540 motor, tires, wheels,
interior detail, ABS body, decal sheet, 3-speed transmission, and
instructions

REQUIRES: Radio: 4-channel with 4-channel receiver and analog or digital trim
function
**Important-if using the Multi Function Control, see COMMENTS**
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment

SPECS: Length: 18.03" (458mm)
Width: 7.7" (195mm)
Height: 12" (305mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66

COMMENTS: The Tamiya Multi Function Control Unit (TAMC6511) not included,
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an 2.4Ghz type radio only with
analog trims such as the Tamiya 4YWD, TAMJ5252.
