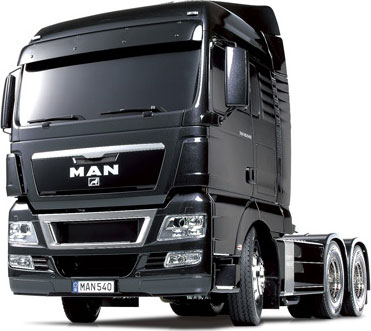

1/14 MAN TGX 26.540 6x4 XLX Ki

The latest addition to Tamiya's 1/14 scale R/C Tractor Truck series is the MAN TGX 26.540 6x4 XLX. This impressive truck, which made its debut at the 2007 European Transport Road Show in Amsterdam, was the winner of the 2008 Truck of the Year award. It features two rear axles which assist in the carrying of heavy loads over long distances. It is powered by an in-line 6 cylinder 12.4 liter turbocharged diesel engine which meets the stringent Euro 5 emissions standards to make it more environmentally friendly.

         This is the electric powered, radio controlled, 1/14 scale
                Tamiya TGX 26.540 6x4 XLX Tractor Truck kit.
            Compatible with the Tamiya Tractor Truck Option Parts
                         for further customization.

FEATURES: Chassis: Ladder frame with aluminum channels and resin cross members
          Cabin: Tilt forward operation just like full-size truck, removable
            fenders to depict a low carrying load
          Drive: Shaft driven from front mounted motor to rear axles which are
            equipped with differentials
          Motor: RS540
          Transmission: Three speed servo controlled constant mesh
          Suspension: Die cast metal front axle and reinforced resin rear
            axles float mounted on metal leaf springs and coil spring shocks
          Cabin: Molded plastic, white in color tilts forward separately from
            fenders, clear plastic windows, separate grille, mirrors, seats
            dashboard and other accessories add to realism
          Wheels: Chrome plated plastic
          Tires: Ten, treaded rubber construction

INCLUDES: 1/14 scale Tamiya TGX 26.540 6x4 XLX semi kit, 540 motor, tires,
            wheels, decal sheet, 3-speed transmission, instructions and coupler
            unit for trailer (trailer not included)

REQUIRES: Radio: 4-channel with 4-channel receiver
          Servos: Two standard size for steering and shifting
          Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
            not use the Tamiya TEU101BK or the TEU104BK
          Battery: 6-cell stick
          Battery Charger: Timed or peak for 6-cell battery
          Paint, building & track equipment

SPECS:    Length: 20.7" (526mm)
          Width:   7.6" (193mm)
          Height: 11.8" (301mm)
          Gear Ratio: Low Gear 1:32.49
                      2nd Gear 1:17.66
                      3rd Gear 1:10.66

COMMENTS: The Tamiya Multi Function Control Unit (TAMC6511) not included,
            provides many different truck related sound effects. The Multi
            Function Control Unit REQUIRES an 2.4Ghz type radio only with
            analog trims such as the Tamiya 4YWD, TAMJ5252.

          The following Tamiya paint colors are recommended in the manual;
            TS-8 Italian Red    TAMR5008    TS-14 Black            TAMR5014
            TS-26 Pure White    TAMR5026    TS-17 Gloss Aluminum   TAMR5017
            TS-31 Bright Orange TAMR5031    TS-29 Semi Gloss Black TAMR5029
            TS-38 Gun Metal     TAMR5038    AS-7 Natural Grey      TAMR8657
            TS-4 German Grey    TAMR5004    X-26 Clear Orange      TAMR8126
