FEATURES
  • LEDs accurately recreate the trucks front and rear lights.
  • Attach the Multi Function Control Unit (MFC-01, not included) to provide sound effects such as attaching/detaching any of the currently available trailers, as well as other easily distinguishable truck sounds.
  • 3-Speed Transmission allows gear shifting to be controlled during driving for added realism.
  • Metal leaf spring suspension.
  • Cabin tilts forward just like the full-sized truck.
  • Type RS540 motor included.
  • ESC, 4-channel transmitter, battery pack & charger not included.
  • Also compatible with a wide range of Tractor Truck Option Parts for further customization.

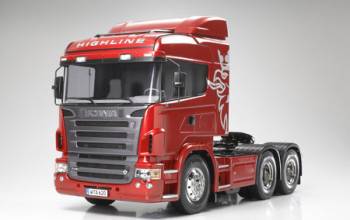

Trucks are essential components of many logistics networks around the world. One such truck which can be seen on the roads carrying large loads is the biggest and most powerful Scania truck, the R620. Tamiya is proud to add this wonderful piece of machinery the R620 6x4 to the 1/14 scale R/C Tractor Truck lineup. This massive tractor truck features 3-axle and is approximately 458mm long. Beautifully reproduced cabin tilts forward separately from the fenders, just like the actual truck. The accurately modeled fenders themselves are removable for realistically depicting a low carrying load. Realistic chassis and suspension further add to the imposing form of this unique model.

VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/14 scale
Tamiya Scania R620 6x4 Highline Tractor Truck kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.

FEATURES: Chassis: Ladder frame with aluminum channels and resin cross members
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles with are
equipped with differentials
Motor: RS540
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Cabin: Molded plastic, white in color tilts forward separately from
fenders, clear plastic windows, separate grille, mirrors and
other accessories add to realism
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

INCLUDES: 1/14 scale Tamiya Scania kit, 540 motor, tires, wheels, decal sheet
3-speed transmission and instructions

REQUIRES: Radio: 4-channel with 4-channel receiver and analog or digital trim
function
**Important-if using the Multi Function Control, see COMMENTS**
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment

SPECS: Length: 20.5" (520mm)
Width: 7.4" (187mm)
Height: 11.5" (293mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66

COMMENTS: The Tamiya Multi Function Control Unit (TAMC6511) not included,
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an 2.4Ghz type radio only with
analog trims such as the Tamiya 4YWD, TAMJ5252.

The following Tamiya paint colors are recommended in the manual;
Aluminum Silver TAMR5017 Mica Red TAMR5039
Clear Orange TAMR1526 Light Gray TAMR8652
Gun Metal TAMR5038 Chrome Silver TAMR1511
Acrylic Semi Gloss Black TAMR1518 Clear Red TAMR1527
Lacquer Semi Gloss Black TAMR5029
