TAM56309

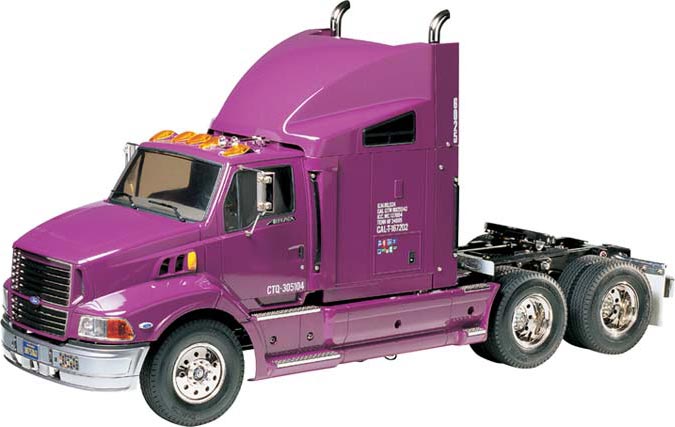

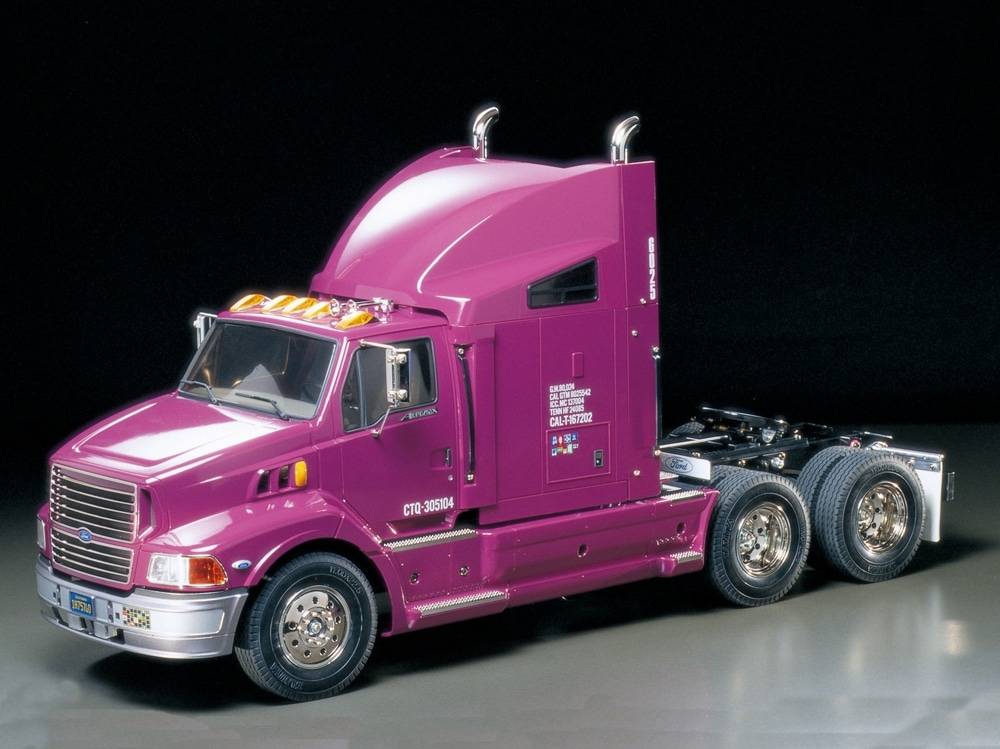

1/14 Ford Aeromax Tractor

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (3)
Optional Items (10)
TAMIYA

TAM56309
1/14 Ford Aeromax Tractor
By TAMIYA
$569.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Freight Truck & Trailer Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$569.99
Warehouse ?
Stock availability for pick up
0
$569.99
Warehouse ?
0
$569.99
Store - Charlottetown ?
0
$569.99
Store - Edmonton ?
0
$569.99
Store - Mississauga ?
0
$569.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
614 mm
Length:
190 mm
Width:
29000 g
Weight:
447mm mm
Wheelbase:
1/14
Scale:

FEATURES
  • 3 speed transmission
  • Aluminum chassis

The massive American rig has joined Tamiya"s 1/14 scale tractor truck stable. Tamiya"s model of the Ford Aeromax tractor truck boasts both large scale realism and authentic functions. Servo-shifted 3-speed transmission is mounted at the front of the aluminum ladder frame.


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/14 scale
Tamiya Ford Aeromax Tractor Truck Kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.

FEATURES: Chassis: Ladder frame with aluminum channels and resin cross members
Body: Molded styrene, white in color
Cabin: Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to double rear axles
Differentials: Bevel gear
Motor: RS540 brushed
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

INCLUDES: 1/14 scale Tamiya Ford Aeromax kit, 540 motor, tires, wheels, body,
decal sheet, 3-speed transmission and instructions

REQUIRES: Radio: 4-channel with 4-channel receiver and analog or digital trim
function
**Important-if using the Multi Function Control, see COMMENTS**
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment

SPECS: Length: 24.17 (614mm)
Width: 7.48" (190mm)
Height: 11.5" (293mm)
Wheelbase: 17.60" (447mm)
Front Tread: 6.14" (156mm)
Rear Tread: 5.43" (138mm)
Weight: 6.39lbs (2900g)
Gear Ratio: 10.6:1
With the 3-speed gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible

COMMENTS: The Tamiya Multi Function Control Unit (TAMC6511) not included,
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES an FM type radio only with analog
trims such as the Tamiya 4YWD, TAMJ5252.
