Home » Product Info »
TAM54612

Motor 15.5T Brushless TBlm-02S

Product Info
TAMIYA

TAM54612
Motor 15.5T Brushless TBlm-02S
By TAMIYA
$159.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Car & Truck Replacement Parts
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$159.99
Warehouse ?
Stock availability for pick up
0
$159.99
Warehouse ?
0
$159.99
Store - Charlottetown ?
0
$159.99
Store - Edmonton ?
0
$159.99
Store - Mississauga ?
0
$159.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

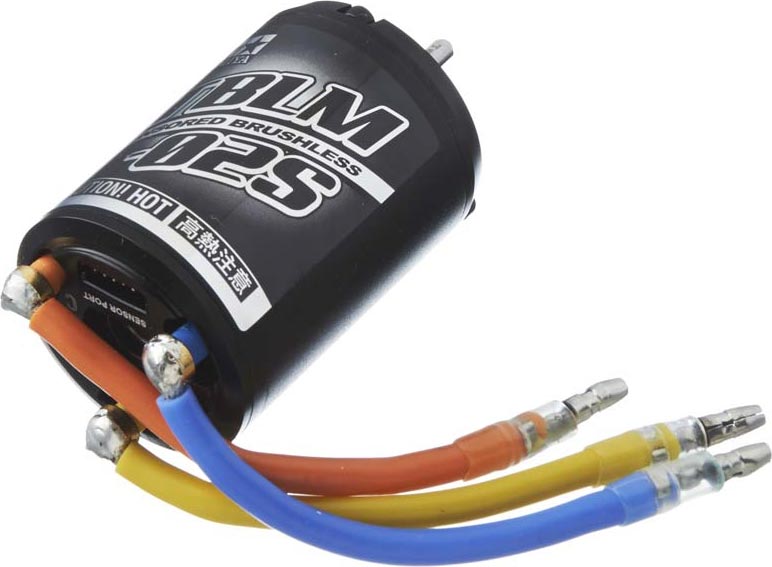

          This is the Tamiya TBLM-02S 15.5T Sensored Brushless Motor.

FEATURES: Sensored design provides smooth operation at both low and high speeds
Designed for use with Tamiya's sensored ESCs such as the TBLE series
(cooling fan recommended for longer ESC life)
Ideal for touring car applications with 6.0 - 8.3 gear ratios,
Tamiya M-chassis vehicles with 5.8 - 7.2 gear ratios, and
Tamiya F104 chassis vehicles with 3.7 - 4.6 gear ratios

INCLUDES: Tamiya 15.5T Sensored Brushless Motor with Wire Leads and Instruction
Sheet

REQUIRES: Sensored ESC such as the Tamiya TBLE series

SPECS: Input Voltage: 6.6 - 7.2V
Length: 2.3" (58mm)
Diameter: 1.4" (36mm)
Weight: 6.28oz (178g)
Wire Lead Size: 12AWG
Shaft Diameter: .125" (3.17mm)

jxs 05/20/15
ir/jxs
4950344546121 4950344546121
TAMC4612
