TAM49490

1/10 Mitsubishi Pajero Metaltop Wide CC01

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM49490

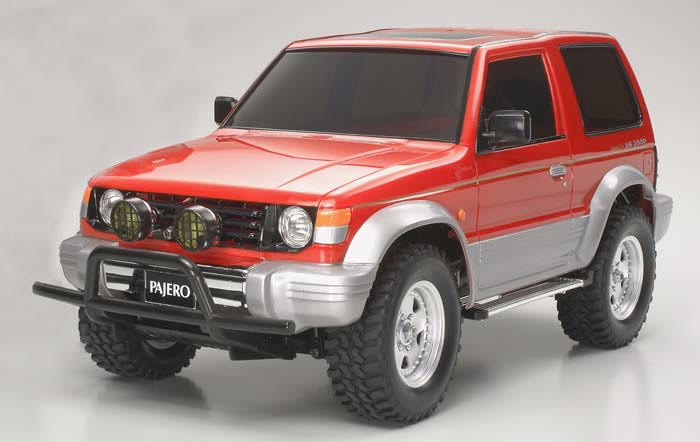

1/10 Mitsubishi Pajero Metaltop Wide CC01
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$220.99
Warehouse ?
StockStock availability for pick up
0
$220.99
Warehouse ?
0
$220.99
Store - Charlottetown ?
0
$220.99
Store - Edmonton ?
0
$220.99
Store - Mississauga ?
0
$220.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

40ml Liquid Surface Primer
$7.99

RS540 Sport Tuned Motor 49/62
$38.99

3mm Grub Screw 44002
$5.99
Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99

Pinion Gear Set 20/21T
$9.99

GT Tuned Motor 25t
$55.99
FEATURES
  • Matt-Chrome looking wheels.
  • Injection-molded ABS resin body and hidden body mounts.
  • Ladder frame bathtub type frame.
  • Front double wishbone suspension

First introduced in 1982, Mitsubishi's Pajero line of Sport Utility Vehicles has enjoyed much commercial and racing success. It was available in both short wheelbase 3-door and long wheelbase 5-door versions. Special race versions of the Pajero have been taking part in rally races around the world since 1983, and it is the single most successful vehicle in the history of the Paris Dakar Rally, a fact which confirms the Pajero's superb off-road capabilities.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

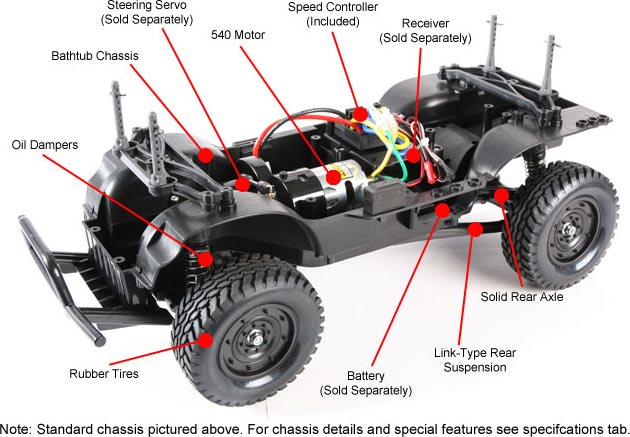

       This is the 1/10 scale electric powered, radio controlled, 4WD,
Mitsubishi Pajero Metaltop Wide Off-Road Truck Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 brushed, with 16T pinion gear
Electronic Speed Control: TEU-104BK with reverse
Shocks: Oil-filled, black plastic construction
Body: Injection molded, black plastic spare
tire cover
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: ABS plastic, brushed chrome 1" (26mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Mitsubishi Pajero Metaltop Wide Off-Road Truck Kit with Oil-Filled
Shocks, 540 Motor, ESC, Injection Molded Body, Tires, Wheels,
Shock Oil, 16 Tooth Pinion Gear and Instruction Manual
_
REQUIRES: Radio: 2-channel with standard size steering servo
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15" (381mm)
Width: 7.1" (180mm) at wheel wells, widest point
Height: 5.3" (135mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 06/13/12
ir/jxs
4950344494903 4950344494903
TAMC9490
