FEATURES

First introduced in 1982, Mitsubishi's Pajero line of Sport Utility Vehicles has enjoyed much commercial and racing success. It was available in both short wheelbase 3-door and long wheelbase 5-door versions. Special race versions of the Pajero have been taking part in rally races around the world since 1983, and it is the single most successful vehicle in the history of the Paris Dakar Rally, a fact which confirms the Pajero's superb off-road capabilities.

The Tamiya R/C replica faithfully captures all of the full-size details. The Pajero body is mounted on the capable CC-01 Cross Country chassis, which features independent front suspension and a rear 4-link rigid suspension set up for fun scale trail running enjoyment.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

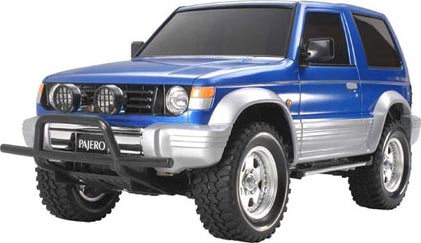

        This is the 1/10 scale electric powered, radio controlled, 4WD,
Mitsubishi Pajero Metaltop Wide Off-Road Truck Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 brushed, with 16T pinion gear
Electronic Speed Control: TBLE-02S
Shocks: Oil-filled, CVA
Body: ABS plastic, white in color (entire body is plastic, the word
Metaltop is part of the model name)
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: ABS plastic, brushed chrome 1" (26mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Mitsubishi Pajero Metaltop Wide Off-Road Truck Kit with Oil-Filled
Shocks, 540 Motor, ESC, Injection Molded Body, Tires, Wheels,
Shock Oil, 16 Tooth Pinion Gear and Instruction Manual
_
REQUIRES: Radio: 2-channel with standard size steering servo
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17.5" (445mm)
Width: 7.7" (195mm)
Height: 7.5" (192mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 16.1" (410mm)
Width: 7.5" (190mm) at fender flares
Height: 5.4" (137mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
