  • Comes with a finished polycarbonate body.
  • Tamiya FineSpec 2.4G radio included
  • TEU-105BK ESC (equipped with BEC) pre-installed.

This is a Read-to-Run expert built radio control model of the Ferrari 458 Challenge race car. The kit has been built by Tamiya's expert builders (XB) to ensure the beginning R/C enthusiast receives a high quality built car so they may enjoy driving it right out of the box.

click image to enlarge

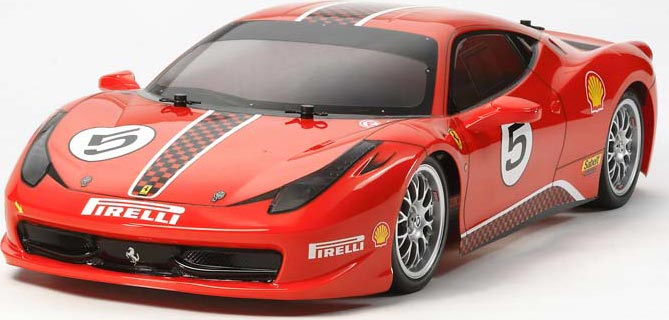

   This is the 1/10 scale electric powered, radio controlled, ready to run
Ferrari 458 Challenge On-Road Car from Tamiya.

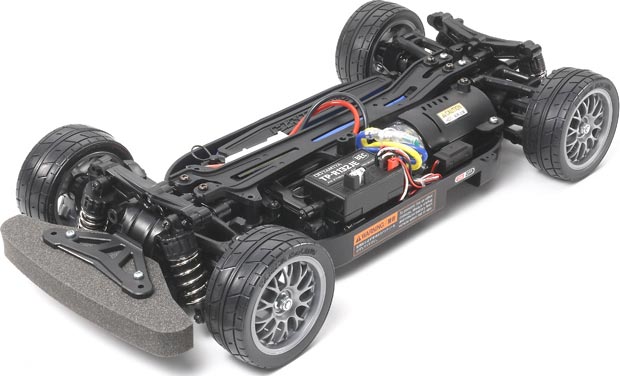

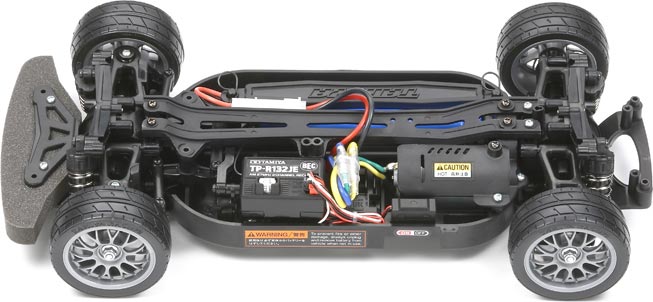

FEATURES: Chassis: TT-01 type ES, streamlined version of the TT-01 type E
chassis-compatible with a variety of Tamiya Option Parts
Drive: Four wheel shaft drive
Motor: 540 motor with pre-attached leads
Differentials: Bevel gear, bushing equipped
Gearbox: Sealed, front and rear
Radio: Tamiya Finespec 2.4GHz
ESC: Tamiya TEU-105BK with reverse
Body: Painted and trimmed with decals and rear wing
Shocks: Plastic bodied, friction
Tires: Treaded 1.02" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: 2.1" (53mm) outer diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Ferrari 458 Challenge On-Road Car with Radio, Motor, ESC, Painted
Body and Instruction Manual

REQUIRES: AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick
Battery Charger: To match selected battery
Building and track equipment

SPECS: Vehicle-
Length: 16.7" (425mm)
Width: 7" (178mm)
Wheelbase: 10.1" (257mm)
Length: 17.4" (441mm)
Width: 7.5" (190mm)
Height: 3.8" (97mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6 DTXC1547
4 8X12mm front & rear diff gears 2 DTXC1597
