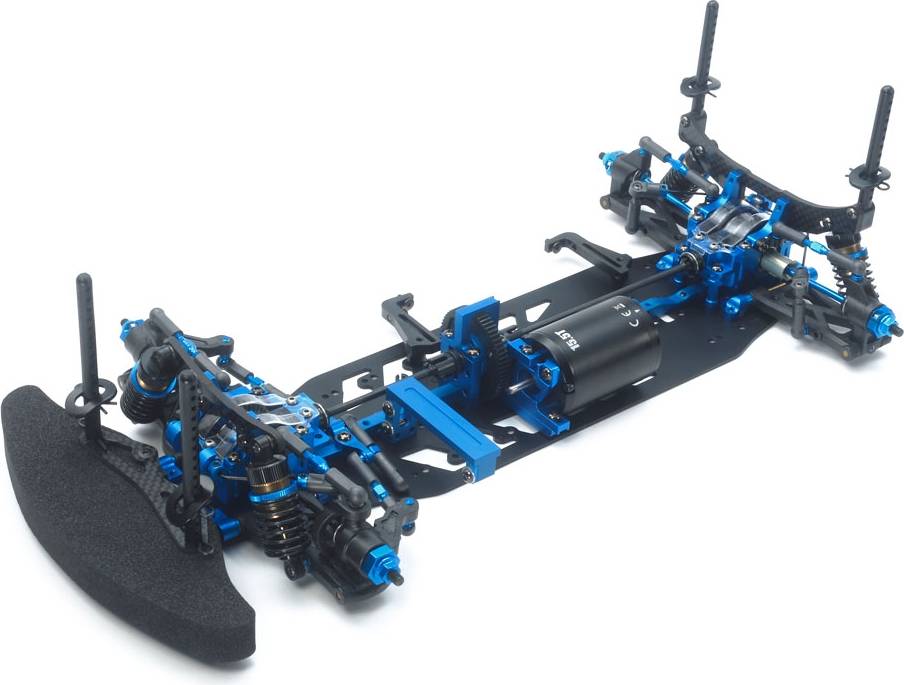

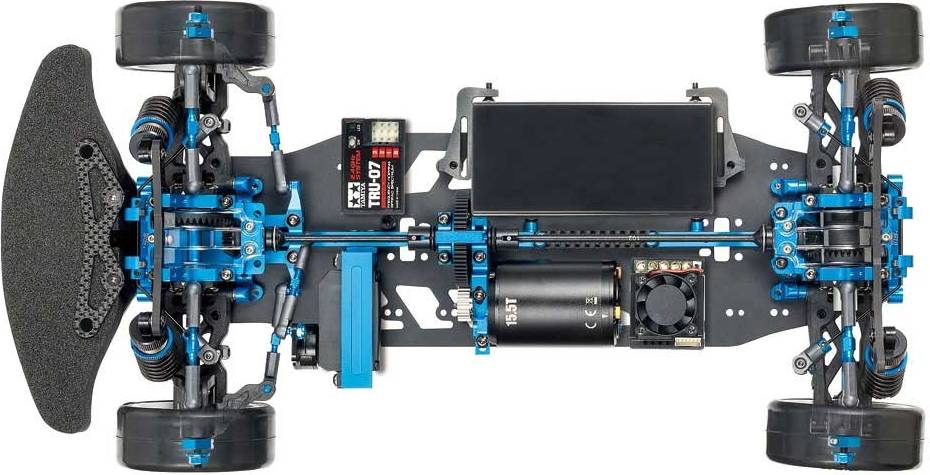

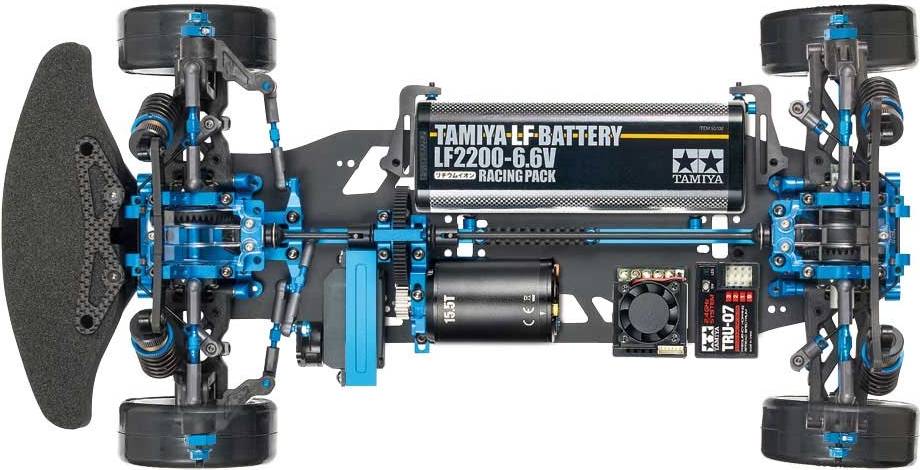

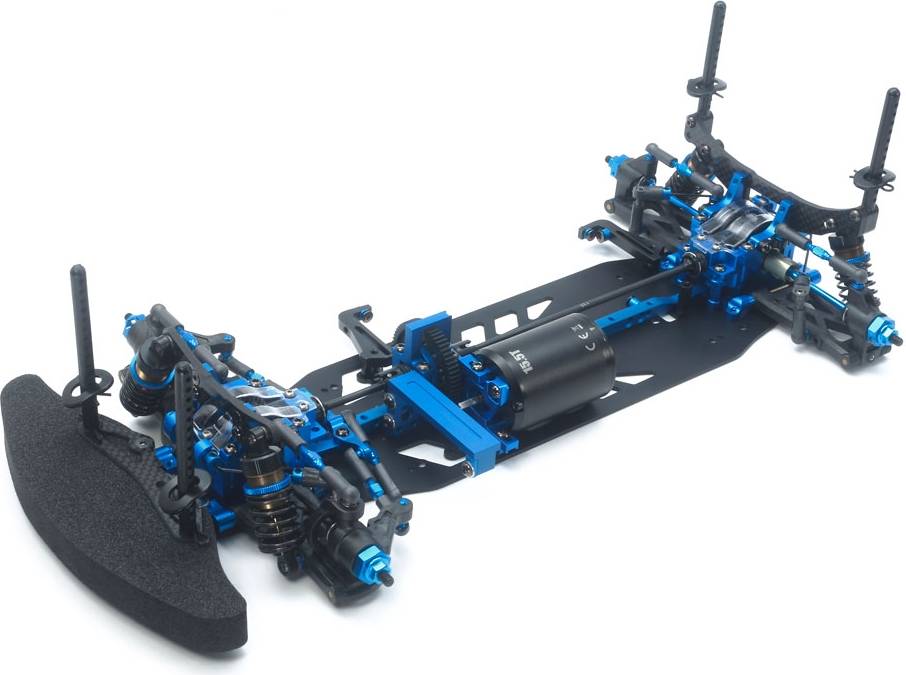

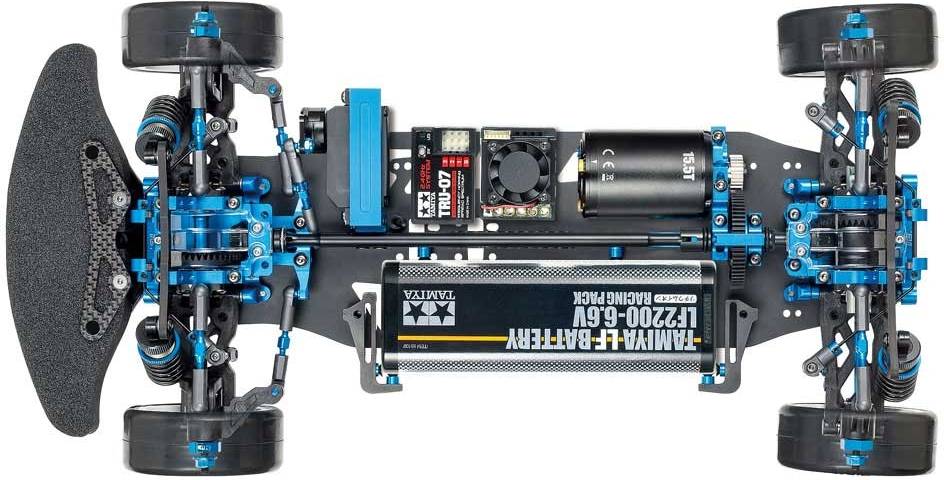

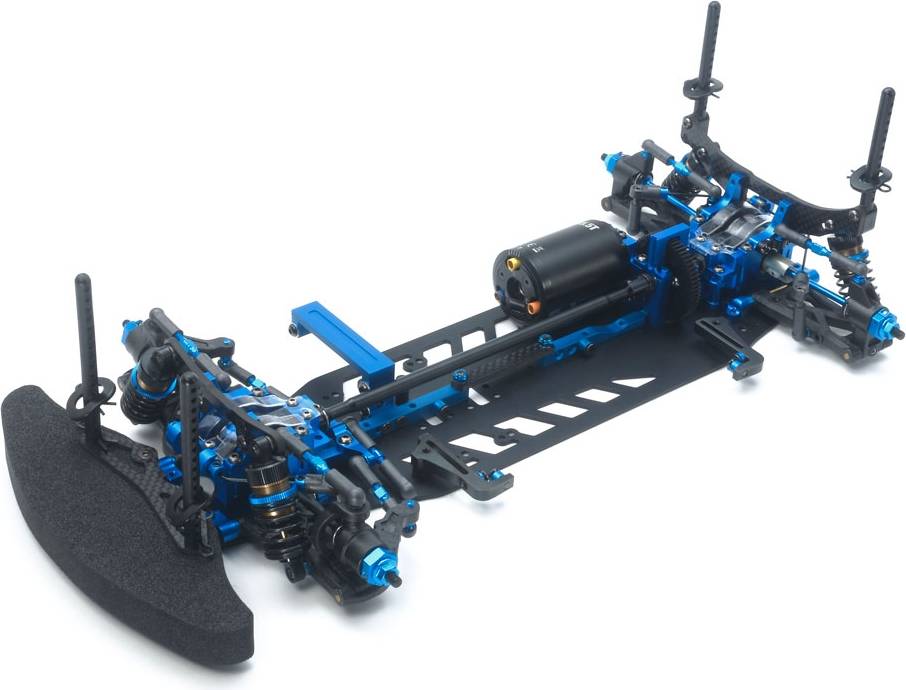

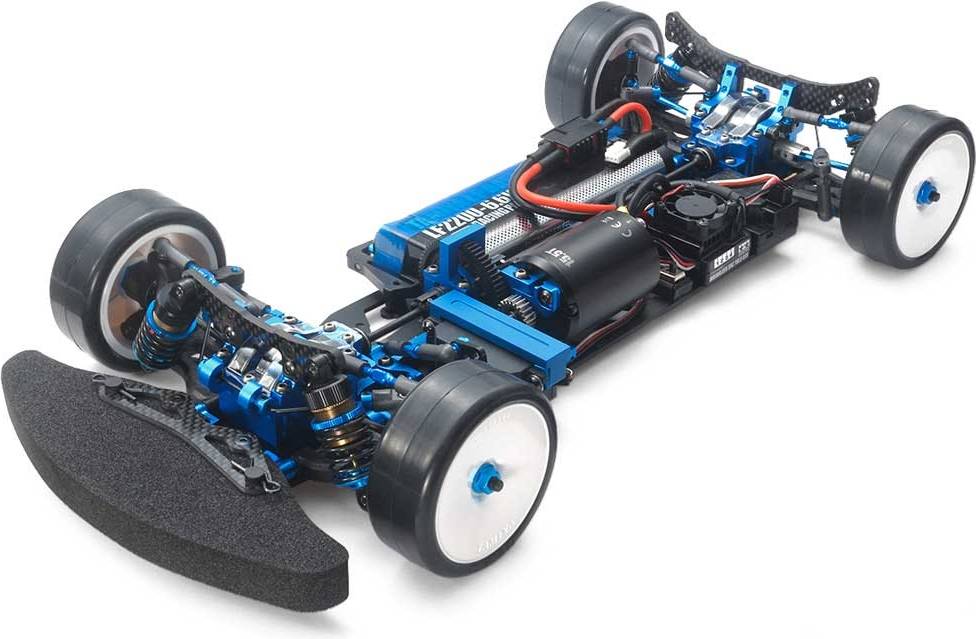

This is the Electric Powered, Radio Controlled, 1/10 Scale
RC TB Evo. 7 On-Road Car Kit from Tamiya.

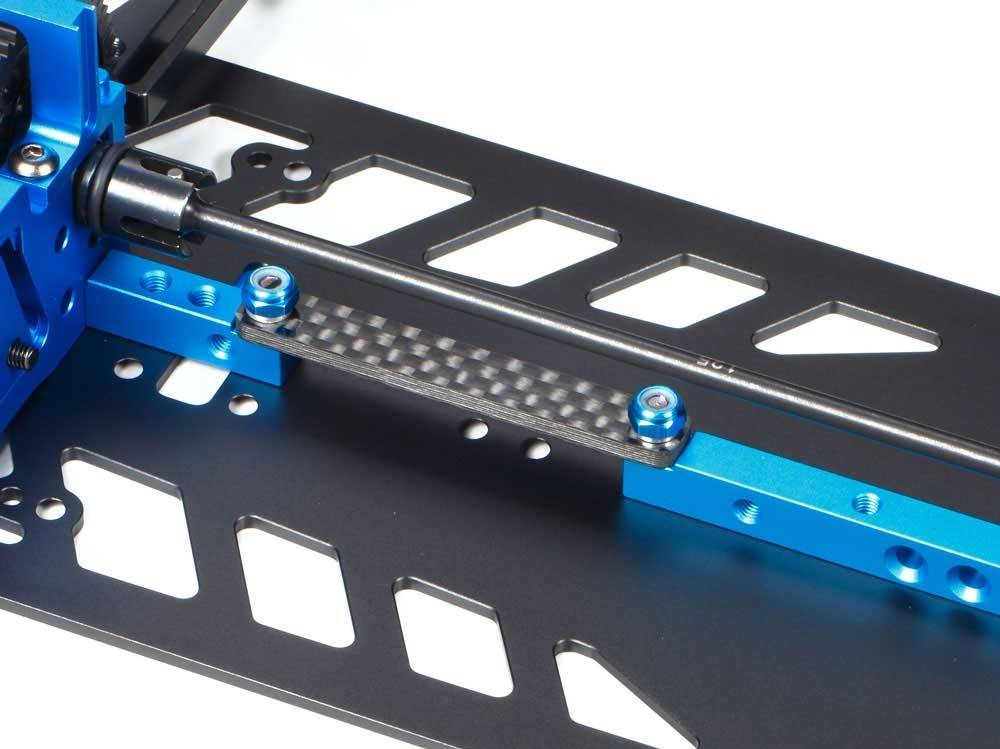

FEATURES: Chassis: 0.08" (2mm) thick aluminum with 0.24" (6mm) thick center
stiffener that provides a blend of rigid pitch damping and
flexible roll, stiffener replaces upper deck
Drive: Four wheel shaft with front direct coupling, and WO universal
shafts
Differential: Gear type, oil-filled
Shocks: Aluminum body, TRF super short big bore
Shock Towers: --" (--mm) thick carbon fiber
Motor Mount: Aluminum, longitudinally mounted, three layouts
available, front, mid or rear for different track conditions and
driving style, motor clearance can be adjusted from above
Ball Bearings: Full set
Steering: Components installed directly onto bulkhead to remove any
effect on chassis roll
Front Bumper: Foam
Suspension: TRF418 suspension arms and TRF419 rear uprights
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front and rear caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis

INCLUDES:

REQUIRES: Radio: 2-channel
Steering Servo: High-speed
Motor: 1/10 scale on-road racing, brushless recommended
ESC: Compatible with selected motor
Battery: 7.4V 2S LiPo recommended
(when using the ESC recommended for this vehicle, a Dean's Male
Ultra Plug must be soldered to the battery leads of the ESC to
connect to the recommended battery)
Battery Charger: Compatible with selected battery
Wheels:
Tires:
Pinion Gear:
Body:
Paint, building & track equipment

SPECS: Length: 14.6" (371mm)
Width: 7.3" (185mm)
Wheelbase: 10.1" (258mm)


COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
