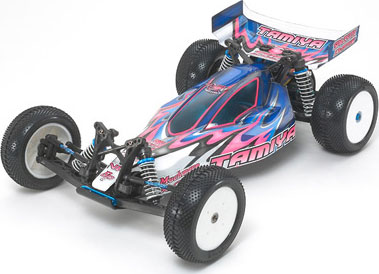

1/10 TRF201 Buggy Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$448.99
Warehouse ?
StockStock availability for pick up
0
$448.99
Warehouse ?
0
$448.99
Store - Charlottetown ?
0
$448.99
Store - Edmonton ?
0
$448.99
Store - Mississauga ?
0
$448.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Body Set Sand-Viper
$26.99

Front Dish Wheels TRF201
$9.99

Diff Screw/Diff Nut 42167
$5.94

FEATURES
  • 1/10 R/C assembly model kit.
  • Newly designed bath-tub type chassis with the motor mounted at rear.
  • Chassis features a newly designed underside shape for an improved center of gravity whilst providing sufficient ground clearance.
  • Newly designed sealed gearbox comes equipped with a ball differential.
  • Newly designed front suspension arms are specific to 2WD buggies.
  • Steering crank with built-in servo saver.
  • Fully adjustable suspension.
  • Includes aeration dampers for off-road cars.
  • Adjustable traction control slipper clutch.
  • Included front wheels are specific to TRF201 (compliant with IFMAR regulation).
  • Included rear wheels are common to those from DB01 and TRF511/501.
  • Rear universal shafts.
  • tires, motor, and R/C unit sold separately.
  • USA version includes body & wing

Bring on the competition! The TRF201 electric 2WD buggy is the latest edition to the Tamiya Racing Factory. After two extensive years in development, this 2WD buggy is sure to be a podium winner. The specifications, features and materials used in the kit are industry standard with Tamiya's unique style and spin included.

About the gearbox

Gearbox is equipped with a ball differential which features inch sized diff. balls (12pcs.),2.6mm dia. diff screw, and newly designed thrust ball bearings. Diff. carrier features anew teeth shape to ensure long-lasting performance. Suspension is fitted with assembly universal shafts.

About the front end

Aeration dampers feature new coil springs. Suspension has been designed to achieve excellent handling performance. Front axles are compatible with wheels using metric size ball bearings (Front axles or wheels using inch size ball bearings, please use Item 54220).

About body and wing

The body has aerodynamics that will assist in providing superior control over your chassis and features a beautiful flowing design. Wing set comes with 2kinds of wings to further customize your settings. (Body and Wing included in USA)

Chassis frame is made from fiberglass reinforced nylon resin and features a longitudinal battery position. Rear section is designed for optimized chassis roll balance.Chassis shaped is designed for an improved center of gravity whilst providing sufficient ground clearance.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the electric powered, radio controlled, 1/10 scale
TRF201 Off-Road Buggy Kit from Tamiya.

FEATURES: Chassis: Fiberglass reinforced nylon resin bathtub style
Drive: Rear wheel
Gearbox: Sealed, adjustable slipper clutch
Differential: Ball type
Front Wheels: Dish type specific to TRF201, IFMAR compliant, 2.2"
(55mm) diameter, 1" (25.4mm) wide
Rear Wheels: Dish type 2.2" (55mm) diameter, 1.5" (37.5mm) wide
(rear wheels from Tamiya DB01 and TRF511/501 are also compatible)
Body: Version 1 clear untrimmed buggy with rounded/wide and straight/
narrow rear wings
Shocks: Oil filled, aluminum body
Spur Gear: Composite construction, 79 tooth 48 pitch
Suspension: Fully adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Steering: Bell-crank with servo saver

INCLUDES: TRF201 Off-Road Buggy Kit with wheels, shocks, shock oil, decals
body, two rear wings and instruction manual

REQUIRES: Radio: 2-channel with standard size steering servo
Electronic Speed Control: Compatible with selected motor
AA Batteries: Eight for transmitter
Motor: Tamiya Super Stock BZ (TAMC1430) recommended, Tamiya 540J
and Sport-Tuned motors cannot be used
Battery: NiCd or NiMH 6-cell stick with standard connector
Battery Charger: Peak type recommended
Tires: Front TAMC2547, Rear, TAMC2548
Pinion Gear: 20-25 tooth, 48 pitch
Building and track equipment

SPECS: Vehicle;
Specs such as finished size not provided by manufacturer
Body;
Length: 11.5" (292mm)
Width: 5.7" (145mm) at widest point
Height: 2.1" (54mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
2 5x10mm Idler Gear 1 DTXC1535
2 5x8mm Diff Gear 1 DTXC1523
2 10x15mm Diff Joint 1 DTXC1595
1 4x8mm Counter Gear 1 DTXC1511
2 3x7mm Steering Linkage 1 DTXC1506
2 5x10mm Rear Hubs 1 DTXC1535
2 5x10mm Front Hubs 1 DTXC1535

jxs 07/12/10
ir/jxs
