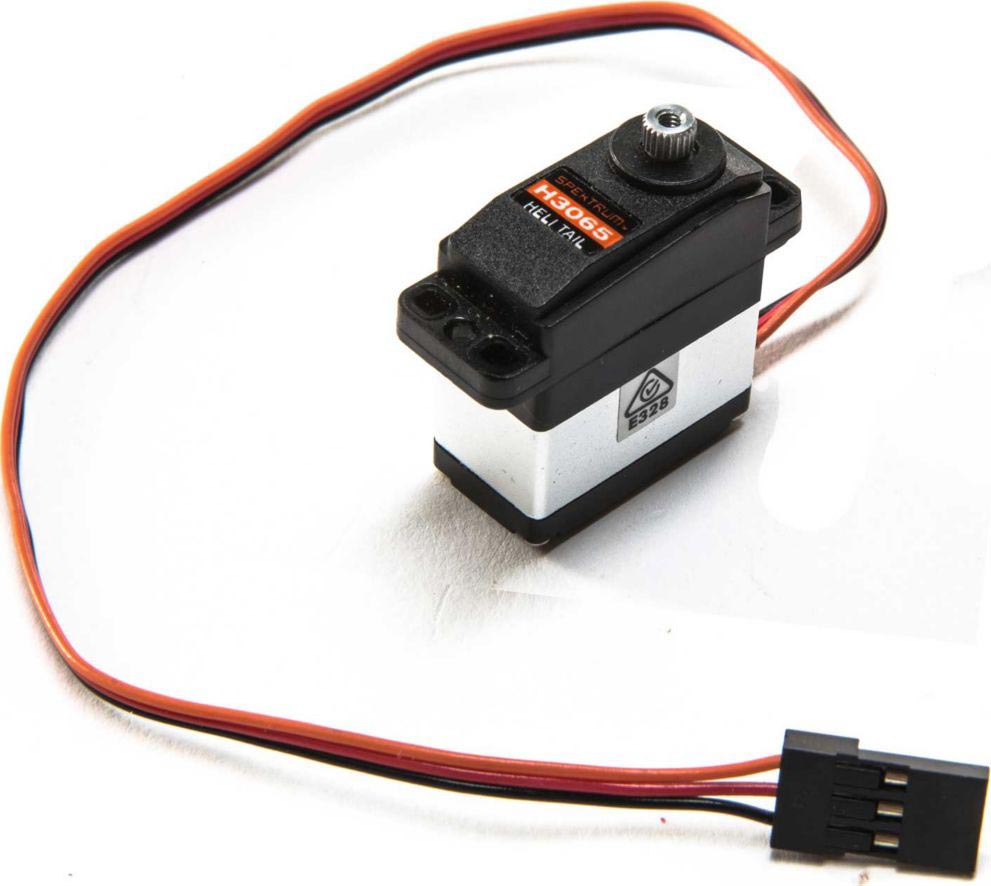

H3065 Mid-Torq Ultra-Speed Micro Tail Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Sub-Micro
Size Class:
Digital
Type:
250 - 450 size heli, tail
Application:
Universal Servo
Connector Type:
Bearing
Bearing/Bushing:
23 mm
Length:
12 mm
Width:
29.6 mm
Height:
12.9 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
1.1 kg-cm (15.75 oz-in)
Torque @ 6.0V:
0.029 sec/60°
Speed @ 6.0V:
FEATURES
Upgrade your 250-450 size heli tail servo with the high speed and accurate H3065 Servo. Touting a blazing fast .029 transit speed and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz
