SPMSA6300

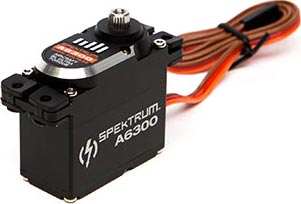

A6300 Ultra Torque High Speed Metal BL HV Servo

Product Info
SPEKTRUM

SPMSA6300
A6300 Ultra Torque High Speed Metal BL HV Servo
By SPEKTRUM
$249.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
No Picture Available

More like this... Servos Digital
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
0
$249.99
Warehouse ?
StockStock availability for pick up
0
$249.99
Warehouse ?
0
$249.99
Store - Stratford ?
0
$249.99
Store - Edmonton ?
0
$249.99
Store - Mississauga ?
3
$249.99
Store - Ottawa ?
0
$249.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Airplane
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
40 mm
Length:
20 mm
Width:
37.8 mm
Height:
79.80 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0-8.4 v
Voltage Range:
27.32 kg-cm (378.37 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
33.65 kg-cm (467.1 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
38.2 kg-cm (530.22 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
23 Tooth
Output Spline:

FEATURES
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency: 200Hz to 333Hz

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobats, jets or any application where massive amounts of torques and holding power are a must.
