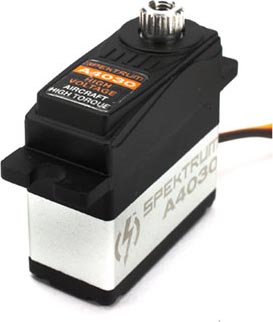

Digital Servo A4030 Micro HV Hi-Torque MG Aircraft
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Minis and Micros
Size Class:
Digital
Type:
15- to 25-size aircraft
Application:
Universal
Connector Type:
Dual Bearing
Bearing/Bushing:
28 mm
Length:
12.7 mm
Width:
27.4 mm
Height:
20 g
Weight:
Metal
Geartrain:
5-pole ferrite
Motor Type:
4.8 - 8.4 v
Voltage Range:
4.9 kg-cm (68 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
6 kg-cm (83.3 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
FEATURES
- HV compatible
- High Torque (85 in-oz of torque at HV, and 56 in-oz at 6V)
- Extremely low deadband and high resolution with impressive holding torque for unmatched performance
- Metal Gear Train
- Aluminum center section case
