SPMAR9030T

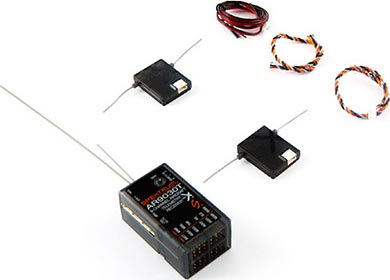

AR9030T 9CH Air Integrated Telemetry Receiver

Product Info | Optional Items | Fits What?
SPEKTRUM

SPMAR9030T
AR9030T 9CH Air Integrated Telemetry Receiver
By SPEKTRUM
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Radio System Accessories, Aircraft Receivers
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
0
$169.99
Warehouse ?
StockStock availability for pick up
0
$169.99
Warehouse ?
0
$169.99
Store - Stratford ?
0
$169.99
Store - Edmonton ?
0
$169.99
Store - Mississauga ?
0
$169.99
Store - Ottawa ?
0
$169.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
AS3X Programming Cable - USB Interface
$34.99

Aircraft Telemetry Temperature Sensor
$19.99

Aircraft Telemetry Flight Pack Voltage Sensor-2Pin
$19.99

Aircraft Telemetry Nitro Eng RPM Sensor w/Bracket
$46.99
SPECIFICATIONS
9-Ch Air Telemetry Receiver
Type:
1.91 (48.5 mm) in
Length:
1.11 (28.3 mm) in
Width:
0.82 (20.9 mm) in
Height:
0.63 (17.83 g) oz
Weight:
9 Channels
Channels:
DSM2/DSMX
Modulation:
2.4 GHz
Band:
3.5-9V V
Voltage Range:

FEATURES
  • Compatible with all Spektrum DSMX transmitters
  • Compact design fits most parkflyer size and larger aircraft
  • Capable of 11ms frame rates
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Receiver pack voltage and flight log data available without the need for additional sensors
  • Dual antennas for optimal RF performance
  • Includes 2 DSMX remote receivers

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
