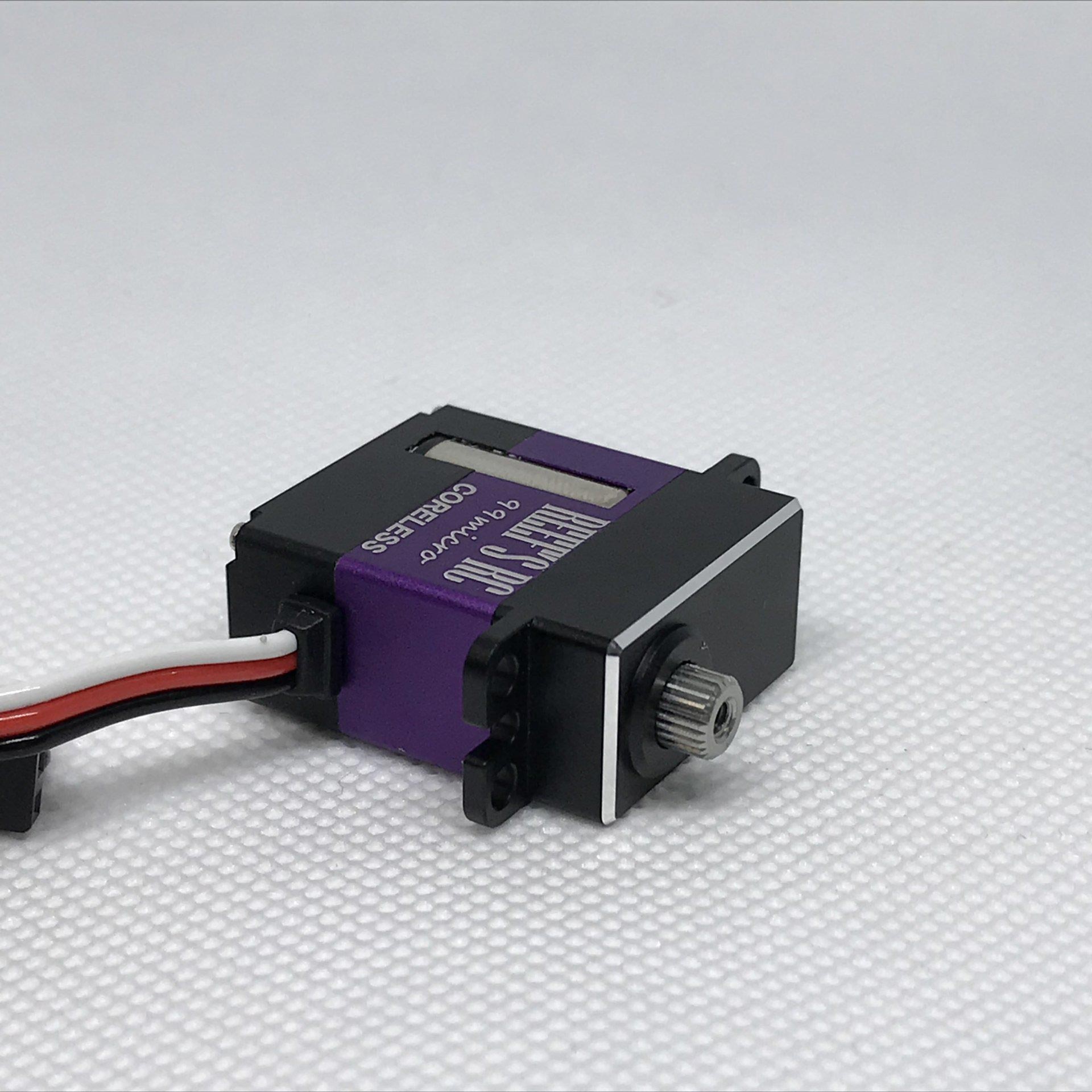

Servo Micro 99 HT HS 0.08/115 @ 8.4v
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
25.5 mm
Length:
13.3 mm
Width:
30 mm
Height:
20 g
Weight:
Metal
Geartrain:
6.0 - 8.4 v
Voltage Range:
6.4 kg-cm (89 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
7.1 kg-cm (99 oz-in)
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
8.3 kg-cm (115 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
