SPECIFICATIONS
22.0 mm
Stator Diameter:
13 mm
Stator Thickness:
9
Number Of Arms:
6
Magnet Poles:
14 Turn Delta
Motor Wind:
11-Strand 0.21mm
Motor Wire:
3585 KV
Motor Kv:
1.74 Amps @ 10 volts
No-Load Current (lo):
0.038 Ohms
Motor Resistance (Rm):
32 A
Max Continuous Current:
330 W
Max Continuous Power:
54 g
Weight:
27.9 mm
Outside Diameter:
3.17 mm
Shaft Diameter:
30.3 mm
Body Length:
50.7 mm
Overall Shaft Length:
3 Cells
Max LiPo Cells:
FEATURES

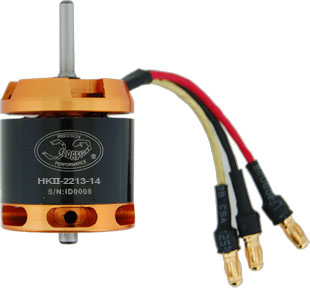

Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
All Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller, heatshrink to cover the bullet connectors and mounting screws. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter. If you intend on running a prop on this motor, you will need to purchase a prop adapter for a 3.17mm shaft (1/8 inch).
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
