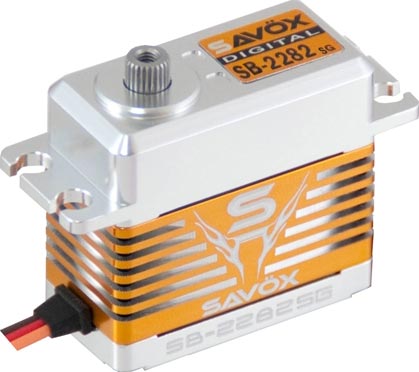

HV BL Alloy Digital Hi-Torq .075/319oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Digital
Type:
Large Heli Cyclic, Aircraft, some surface
Application:
Universal
Connector Type:
Dual BB
Bearing:
Dual BB
Bearing:
40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
79.0 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
236.1 oz-in
Torque @ 6.0V:
0.075 sec/60°
Speed @ 6.0V:
319.4 oz-in
Torque @ 7.4V:
0.075 sec/60°
Speed @ 7.4V:
FEATURES
The SB2282SG is a high speed servo running at .075sec transit @ 7.4V with a healthy torque rating of 319.4oz in. This servo is a great choice for your large class heli cyclic.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Brushless motor provides longer life and cooler operating temps.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Unique steel gears for increased strength
- Our servos are totally green - from materials to production, these servos are environmentally friendly.
- This servo is intended for cyclic use in large class helis, aircraft and some
click image to enlarge
ADDITIONAL PHOTOS|
|
PRODUCT RESOURCES
4710006992747 4710006992747
SAVSB2282SG
