HV Brushless Digital Ultra-Speed .048/138oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Gyro, Rudder, Heli Cyclic
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
66 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
5 kg-cm (69.44 oz-in)
Torque @ 6.0V:
0.06 sec/60°
Speed @ 6.0V:
10 kg-cm (138.9 oz-in)
Torque @ 7.4V:
0.048 sec/60°
Speed @ 7.4V:
FEATURES

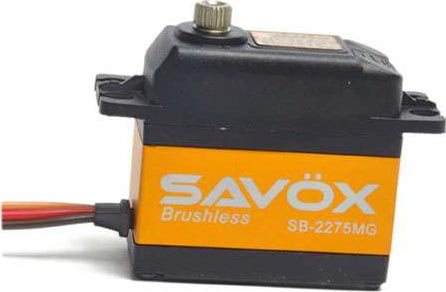

This is the Savox SB-2275MG High Voltage Lightning Speed Brushless Metal Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and metal gearset.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Savox servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for Gyro and Rudder servo. Also ideal for Heli Cyclic.
click image to enlarge
ADDITIONAL PHOTOS|
|
PRODUCT RESOURCES
4710006992488 4710006992488
SAVSB2275MG
