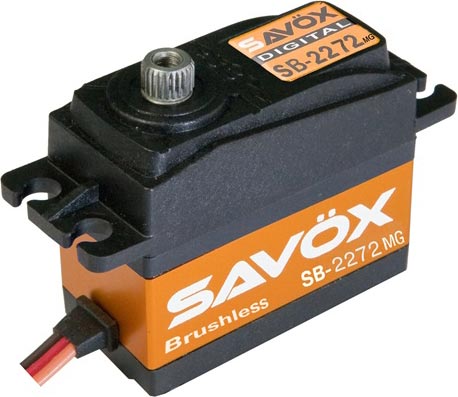

SAVSB2272MG

HV Brushless Digital Heli Tail .03/97.2oz

Product Info | Replacement Parts
SAVOX

SAVSB2272MG
HV Brushless Digital Heli Tail .03/97.2oz
By SAVOX
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... SAVOX
All items from... SAVOX


 Inventory Status Legend
StockStock availability for on-line ordering
0
$149.99
Warehouse ?
StockStock availability for pick up
0
$149.99
Warehouse ?
0
$149.99
Store - Stratford ?
0
$149.99
Store - Edmonton ?
0
$149.99
Store - Mississauga ?
0
$149.99
Store - Ottawa ?
0
$149.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
SB-2272MG Top & Bottom Servo Case w/Scr
$9.99

Servo Gear Set w/Bearings SB2272MG
$38.99

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
38.5 mm
Height:
66 g
Weight:
Steel Gear
Geartrain:
Brushless
Motor Type:
4.8-7.4 V
Voltage Range:
3 kg-cm (41.8 oz-in)
Torque @ 4.8V:
0.55 sec/60°
Speed @ 4.8V:
5 kg-cm (69.44 oz-in)
Torque @ 6.0V:
0.45 sec/60°
Speed @ 6.0V:
7 kg-cm (97 oz-in)
Torque @ 7.4V:
0.32 sec/60°
Speed @ 7.4V:

FEATURES
  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
  • Extremely strong unique steel gears ensure long-life and durability.
  • The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Ideal for 1/8th or 1/10th scale trucks and buggies, every control surface for giant scale aircraft, and 700 class heli rudder.
