Runcam Hybrid 4K HD FPV Camera
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
Discontinued
|
click to enlarge
|
More like this... Video Equipment Accessory, FPV Camera
But only from... RUNCAM
All items from... RUNCAM
But only from... RUNCAM
All items from... RUNCAM
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
SONY 8MP
HD Sensor:
SONY 1.3MP
Analog Sensor:
145 °
Field of View (16:9):
150 °
Field of View (4:3):
4K@30fps | 2.7K@60/50fps | 1080P@120/60/50fps
Video Resolution:
MP4
Video File Format:
NTSC/PAL
TV Mode:
HD supports UART remote control; FPV(Analog) supports UART fimrware update.
Interface:
<128Gb U3/V30 FAT32 recomended
Micro SD Card:
20x20 mm
Mounting Holes Distance:
29x29 mm
PCB Size:
19x25 mm
Lens Module Size:
M10
HD Lens Specs:
M8
FPV Lens Specs:
DC 5-20 V
Input Voltage:
480 mA
Current @ 5V:
140 mA
Current @ 12V:
18 g
Weight:
FEATURES
- Remote-control HD recording.
- 145° FOV HD recording.
- Racing Level FPV Latency
- Single Board Design
FOV 145° HD recording.
Customized high-quality 7 layers of glass lens + SONY sensor, wider FOV, better image quality.

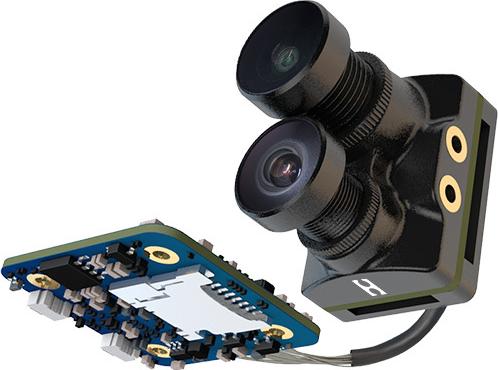

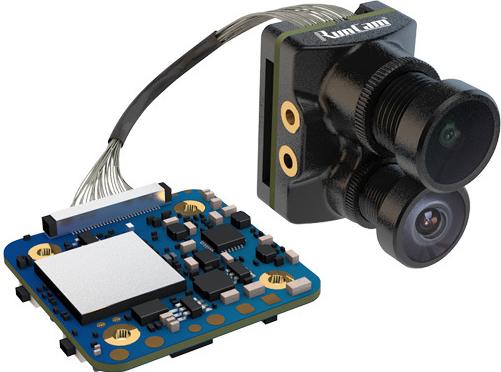

Single board, simple installation.
- 20x20mm mounting sized single mainboard.
- Save more stack space.
- Compatible with more frames.
Racing-level 6ms FPV latency.
The truth is, the inner FPV camera is a well-known professional racing camera - the RunCam Racer. The latency is unbelievable 6ms. And of course, the FPV image quality is also top level.
Remote-control HD recording.
After connecting Tx & Rx to the flight controller, you can easily start and stop recording through your radio.
QR code parameter settings.
You can change resolution, shutter speed, ISO and so on through the RunCam App.
Upgradable FPV camera.
What? An FPV camera can do firmware upgrading? Yes, it's true, you can do that through the SpeedyBee App.
Includes:
- (1) Camera
- (1) Plastic cover
- (1) Male 3 Pin FPV Silicone Cable
- (1) Female 3 Pin FPV Silicone Cable
- (1) Set of M2 Screws
- (1) Manual
click image to enlarge
