RCTFIXHAWK

RCTimer Fixhawk 32bit APM Flight Controller

Product Info | Optional Items
RC Timer

RCTFIXHAWK

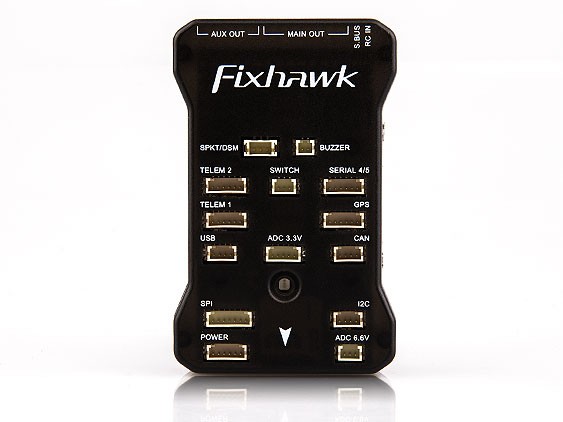

RCTimer Fixhawk 32bit APM Flight Controller
By RC Timer
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Helicopters, Flight Control Systems
But only from... RC Timer
All items from... RC Timer


 Inventory Status Legend
StockStock availability for on-line ordering
0
$175.99
Warehouse ?
StockStock availability for pick up
0
$175.99
Warehouse ?
0
$175.99
Store - Stratford ?
0
$175.99
Store - Edmonton ?
0
$175.99
Store - Mississauga ?
0
$175.99
Store - Ottawa ?
0
$175.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
RCTimer CN06 Plus U-Blox GPS Receiver/Magnetometer
$35.99

APM/Arduflyer/Fixhawk Power Module T Plug Kit
$21.99

Bluetooth Datalink
$59.99

RCTimer U-Blox LEA-6H GPS/Magnetometer V2
$68.99
SPECIFICATIONS
82 mm
Length:
51.5 mm
Width:
17 mm
Height:

FEATURES
  • Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
  • 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
  • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
  • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
  • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
  • Redundant power supply inputs and automatic failover
  • External safety button for easy motor activation
  • Multicolor LED indicator
  • High-power, multi-tone piezo audio indicator
  • microSD card for long-time high-rate logging



Please Note: Fixhawk is a PPM-input autopilot, which means that it gets RC input from a single cable to the receiver, either via the PPM port, the Futaba S.BUS port, or the special satellite receiver port for Spektrum gear. Most modern RC receivers allow for PPM output, but some, such as non-S.BUS Futaba receivers, do not. If your receiver does not support PPM output, please order a PPM encoder board



Please Note: GPS functionality require purchase of GPS Compass/Receiver, sold separately.

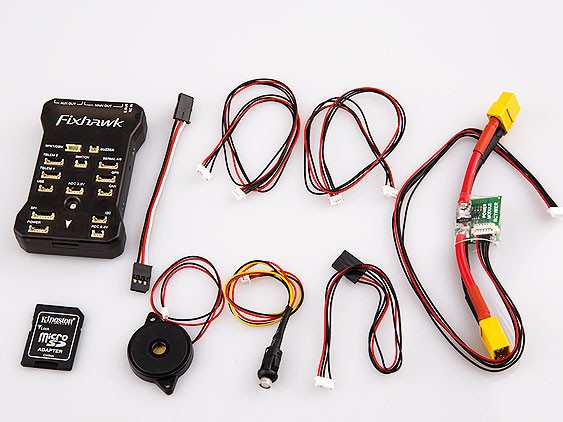

Fixhawk includes:

•Fixhawk autopilot x1
•MicroSD 4G x1 ★Mounted on Fixhawk★
•SD Adapter x1
•30mm Buzzer x1
•E-Switch Safety switch button x1
•GPS/Radio Cable 300mm x2
•OSD Cable 200mm x1
•PPM/S.BUS. Receiver Cable 100mm x1
•XT60 Power module x1

Specifications

Microprocessor:

32-bit STM32F427VIT6 Cortex M4 core with FPU 168 MHz/256 KB RAM/2 MB Flash

32 bit STM32F103C8T6 failsafe co-processor

Sensors:

ST Micro L3GD20 3-axis 16-bit gyroscope

ST Micro LSM303D 3-axis 14-bit accelerometer / magnetometer

Invensense MPU6000 3-axis accelerometer/gyroscope

MEAS MS5611-01BA03 barometer

Interfaces:

5x UART (serial ports), one high-power capable, 2x with HW flow control

2x CAN

Spektrum DSM / DSM2 / DSM-X® Satellite compatible input up to DX8 (DX9 and above not supported)

Futaba S.BUS® compatible input and output

PPM sum signal

RSSI (PWM or voltage) input

I2C®

SPI

3.3 and 6.6V ADC inputs

External microUSB port

Power System:

Ideal diode controller with automatic failover

Servo rail high-power (7 V) and high-current ready

All peripheral outputs over-current protected, all inputs ESD protected



Additional information available here:

http://www.rctinfo.com/fixhawk.html
