RCTimer CN06 Plus U-Blox GPS Receiver/Magnetometer
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Multirotor Helicopters, Flight Control System Accessories
But only from... RC Timer
All items from... RC Timer
But only from... RC Timer
All items from... RC Timer
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
- u-blox UBX-G6010-ST
- 5 Hz update rate
- 25 x 25 x 2 mm ceramic patch antenna
- LNA and SAW filter
- Rechargeable 3V lithium backup battery
- Low noise 3.3V regulator
- I2C EEPROM for configuration storage
- GPS Power and Fix indicator LED
- 40.64 x 66.42 x 7.8 mm total size, 12.4 grams
- Mounting hole diameter: 3.3mm
- Mounting hole installation position 61.09 x 35.31mm
- HMC5883L Magnetometer
- ArduFlyer/APM 2.5.x compatible external Magnetometer I2C 3.3V interface
- ArduFlyer/APM 2.5.x compatible Status LEDs for ARM and GPS

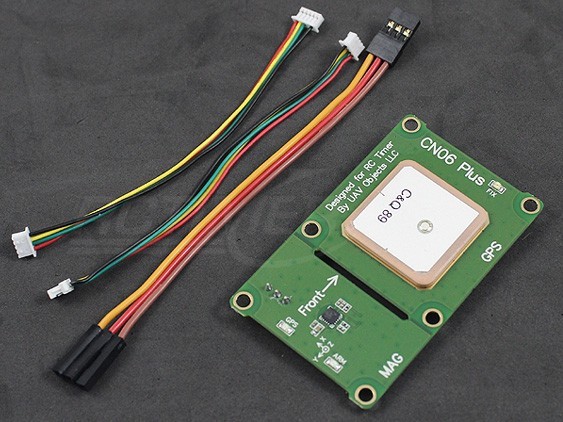

Package Contents:
CN06 Plus PCB
Cable 100mm ArduFlyer/APM 2.5.x compatible GPS 5-pin JST
Cable 100mm ArduFlyer/APM 2.5.x compatible I2C 4 pin JST
Cable 100mm ArduFlyer/APM 2.5.x compatible Status LED 0.1
PRODUCT RESOURCES
CN06PLUS
