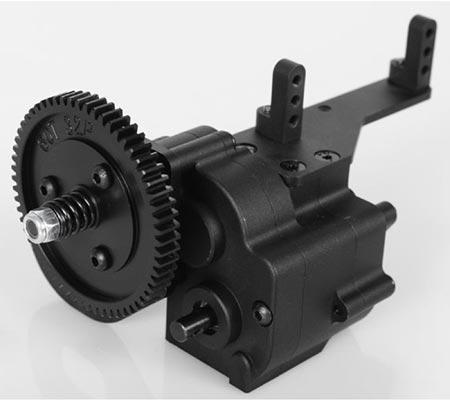

AX2 2-Speed Transmission Wraith SCX10
|
click to enlarge
|
More like this... Car & Truck Accessories, Aftermarket Hop Up Parts
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
SPECIFICATIONS
3.15 in
Length:
2.6 in
Height:
4.8 in
Width:
8.71 oz
Weight:
FEATURES
- CNC Machined Billet Aluminum
- Wraith / SCX10 direct fit
- 15T 32P Steel Pinion
- 60T 32P Delrin Spur
- Gear ratio Pinion / Spur ratio = 4:1
- Wide Steel 48 pitch internal gears
- 1st Gear Ratio = 5.05:1
- 2nd Gear Ratio = 1.78:1
- Slipper Clutch
- Shift Servo mount
- Compatible With Other Brand Pinions and Spur Gears
- Output Shaft OD: 0.19" / 5mm
Included:
1 x AX2 2 Speed Transmission for Axial Wraith & SCX10/Honcho
1 x 15t 32p Hardened Steel Pinion Gear
1 x M3 x 15mm Set Screw
2 x Mini Plastic Rod End
5 x M3 x 10mm FHCS (Black)
4 x M3 x 8mm BHSC (Black)
2 x M3 x 12mm BHSC (Black)
1 x M3 x 3mm Set Screw
