RCFZRTR0032

1/10 Gelande II RTR Defender D110 Truck

RC FOUR WHEEL DRIVE (RC4WD)

RCFZRTR0032
1/10 Gelande II RTR Defender D110 Truck
By RC FOUR WHEEL DRIVE (RC4WD)
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck & Crawler
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)


 Inventory Status Legend
StockStock availability for on-line ordering
0
$799.99
Warehouse ?
StockStock availability for pick up
0
$799.99
Warehouse ?
0
$799.99
Store - Stratford ?
0
$799.99
Store - Edmonton ?
0
$799.99
Store - Mississauga ?
0
$799.99
Store - Ottawa ?
0
$799.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
1.9" 5 Lug Steel Wheel Hex Hub
$19.99

Bigdog 1/10 Dual Axle Scale Boat Trailer
$359.99

K44 Ultimate Scale Cast Rear Axle
$109.99

K44 Ultimate Scale Cast Front Axle
$109.99
540 Crawler Brushed 45t
$19.99

Yota II Ultimate Scale Cast Axle Front
$109.99

Steel Punisher Shaft V3 3.56-4.5 90.5-114.8mm
$54.99

Yota II Ultimate Scale Cast Axle Rear
$109.99
SPECIFICATIONS
22.91 in
Length:
8.7 in
Width:
9.69 in
Height:
10.6 lbs
Weight:
13 in
Wheelbase:
XR4 4-Channel 2.4Ghz
Radio Included:
35T 540 Size
Brushed Motor Included:

FEATURES
  • Cast Metal Axles with Locked differentials
  • Custom Designed for True to Scale Looks
  • Twister High Torque Metal Gear Digital Servo
  • Chassis Mounted Steering servo
  • 540 Crawler Brushed Motor 45T
  • 3 Link Front and 4 Link Rear Suspension
  • Super Grip Dirt Grabber Tires
  • R3 Single Speed Transmission
  • Realistic Aluminum Ladder Frame Chassis
  • Center Mounted Realistic 4x4 Transfer Case
  • Outcry II Waterproof ESC
  • Plastic Fuel Cell Receiver Box
  • Dual Spring Oil Filled Shock Absorbers
  • 1.9" Stamped Steel Beadlocks W/Lug Nuts
  • 6-Cell 3000MAH NiMH Battery Pack
  • NiMH Peak Battery Charger

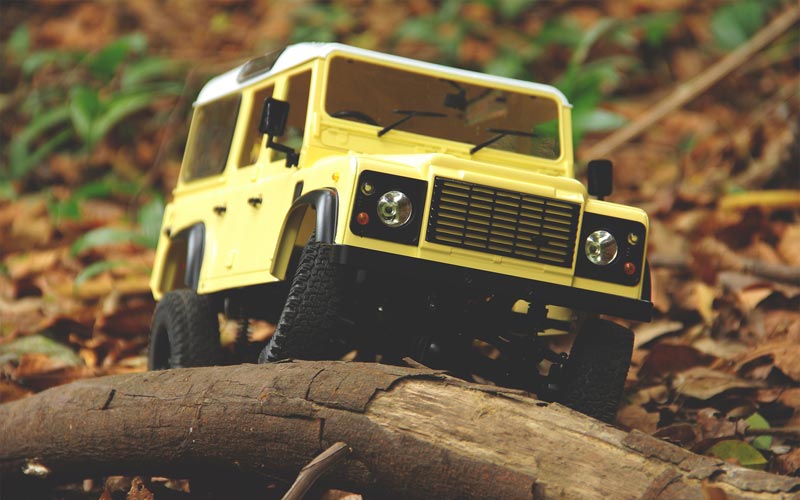

Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

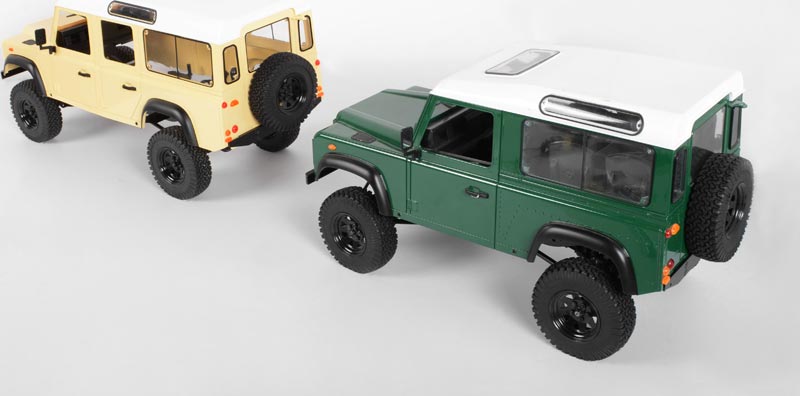

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

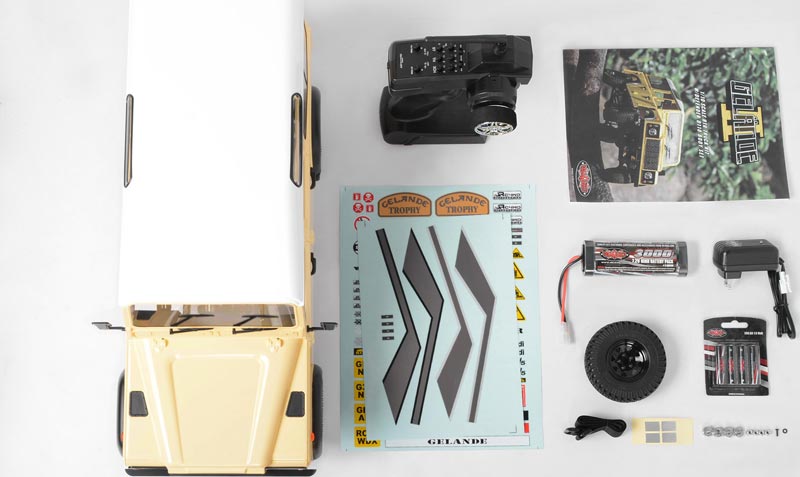

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 180.5mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels
Type: 1.9’’ 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheelbase: 331mm (13")
Width: 582mm (22.91")
Height: 246mm (9.89")
Ground Clearance: 48mm (1.8")
Final Drive Ratio: 31.9:1
Weight: 6.99Lbs / 3.17Kg

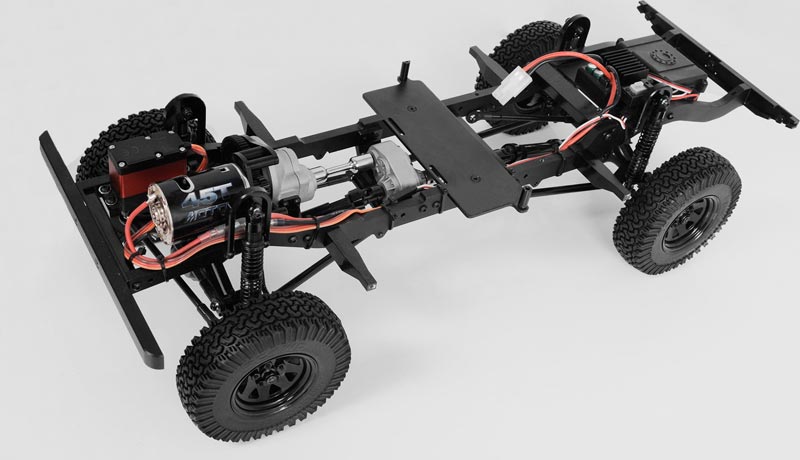

DRIVETRAIN

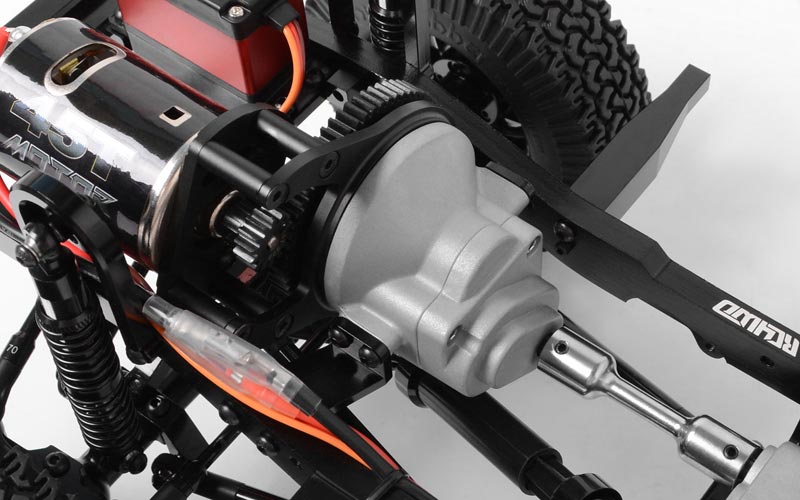

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the same heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

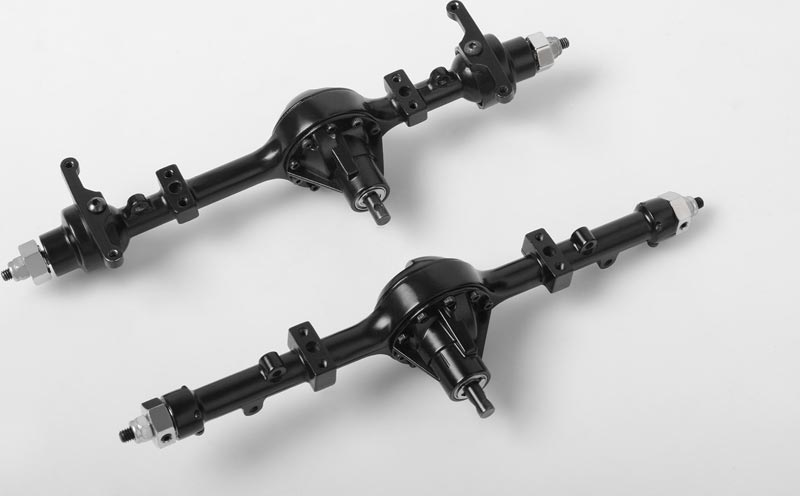

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

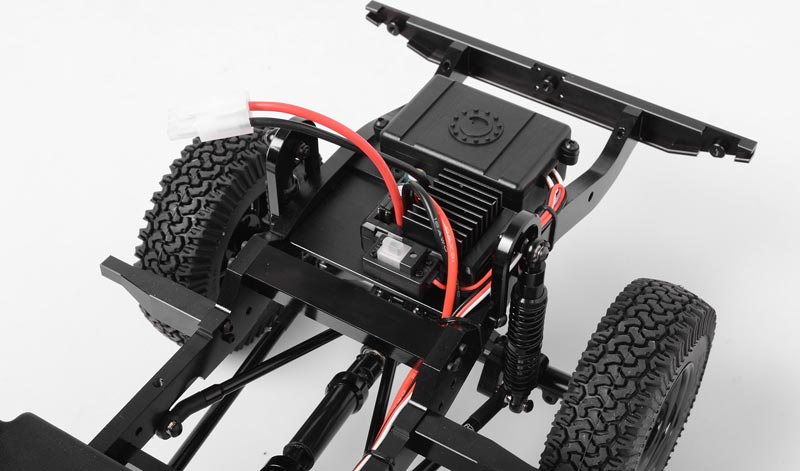

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

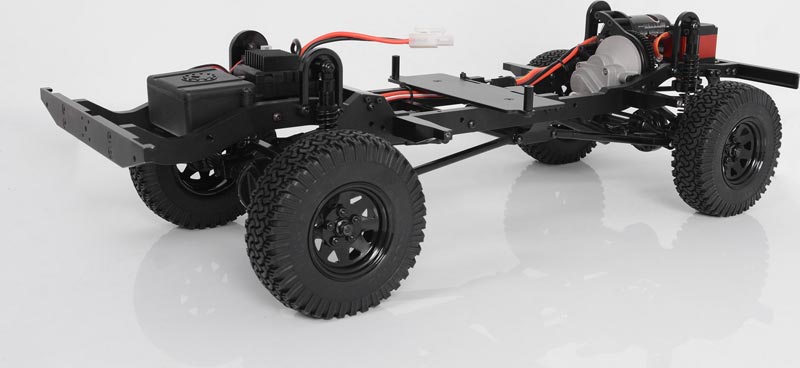

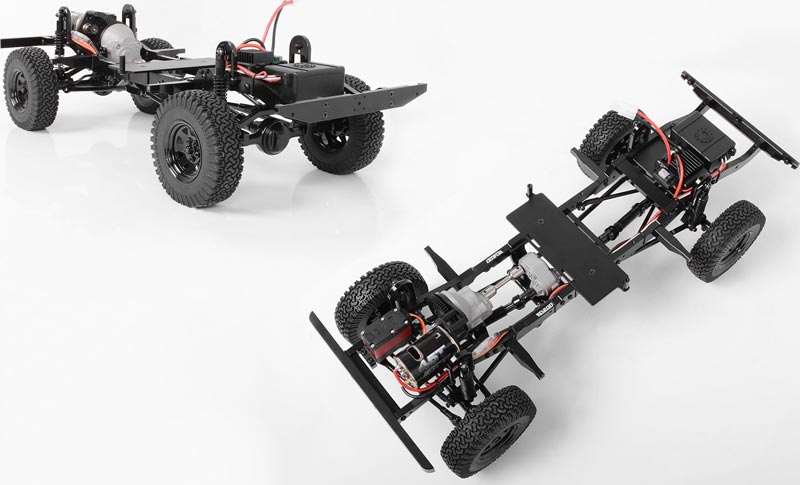

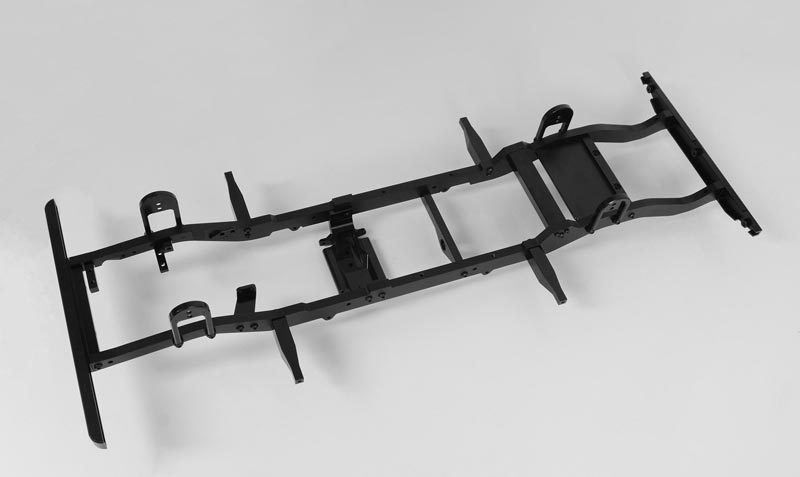

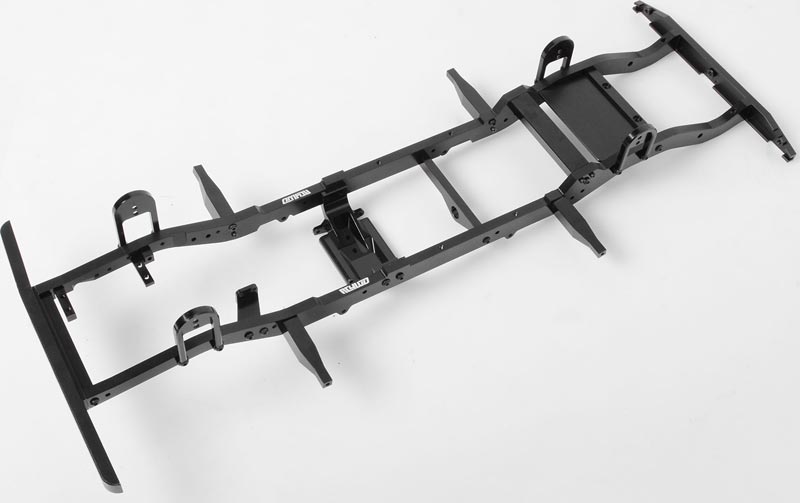

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength..

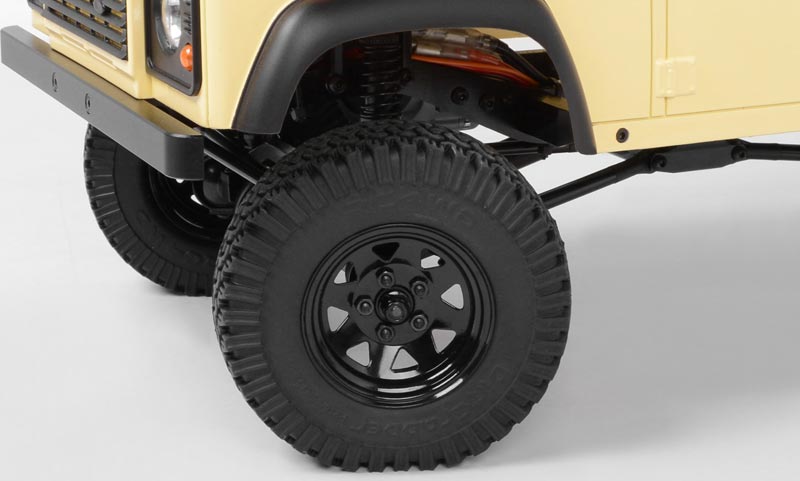

The G2 includes a set of RC4WD Black Stamped Steel 1.9’’ Internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

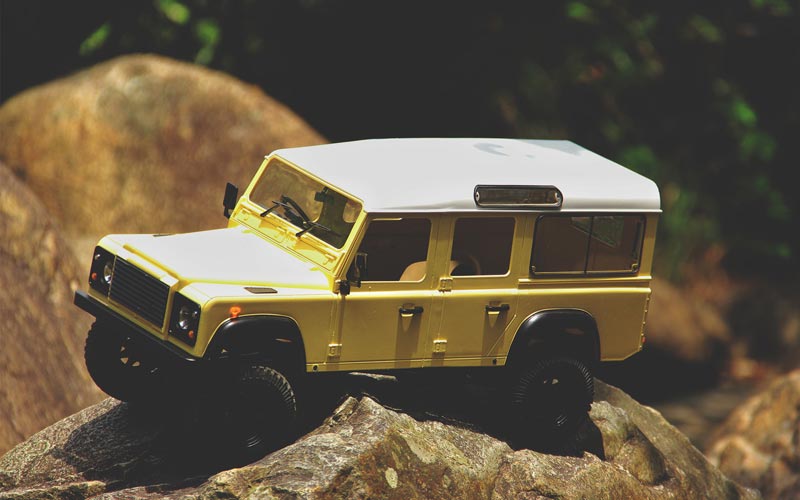

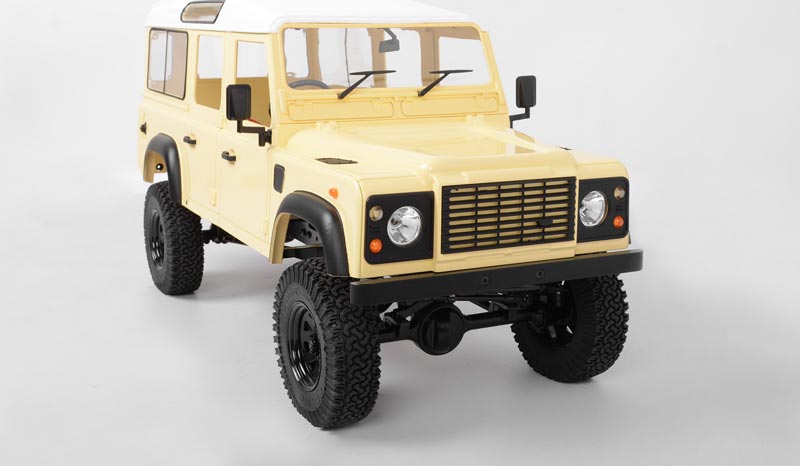

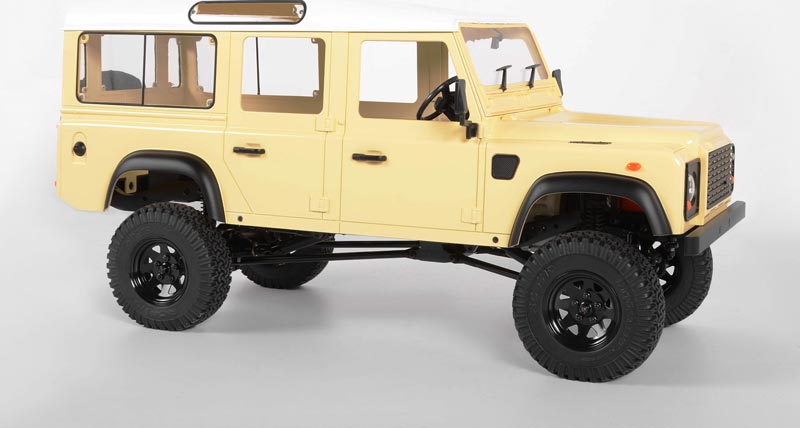

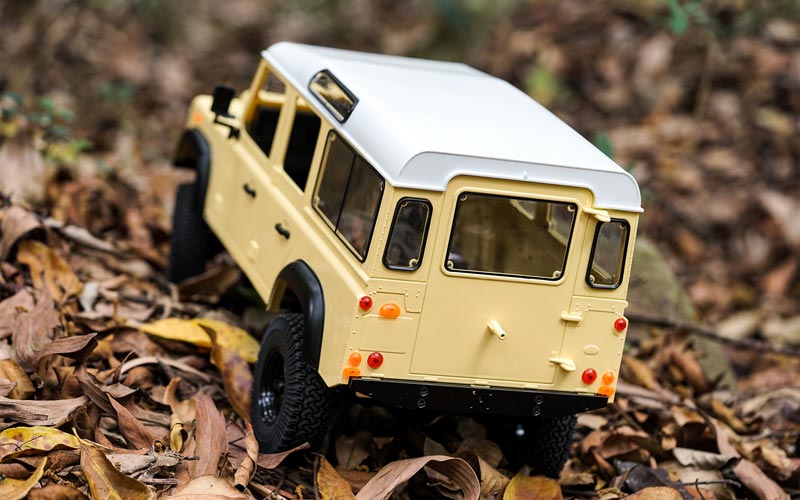

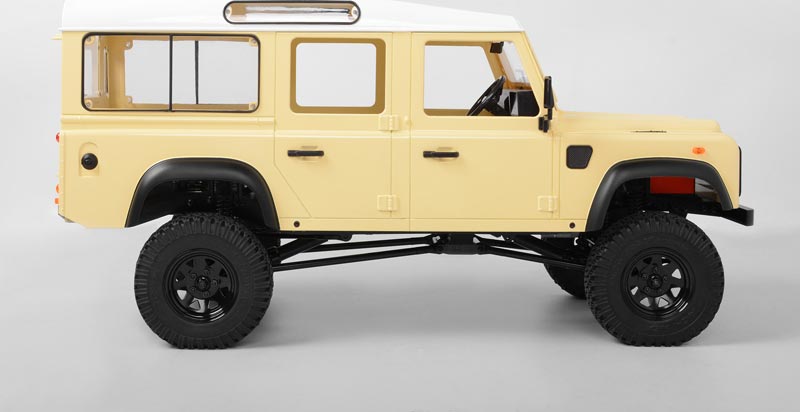

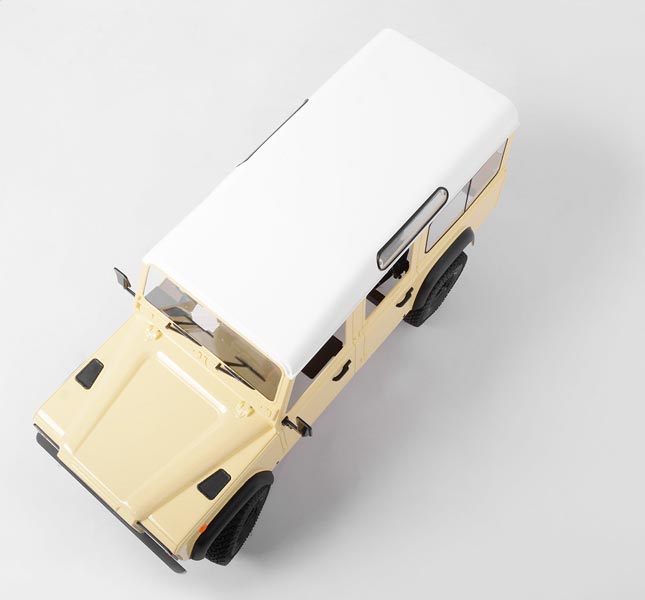

The G2 features the Defender Scale Body Set. The Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

The unmistakable lines of a classic. The Defender Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The Defender Body Set comes in durable hard plastic and painted in a classic Sandglow Yellow with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.

The Defender Body Set includes a scale dashboard and steering wheel. Interior options are available on our site to complete the look, making it perfect for a scale driving figure!

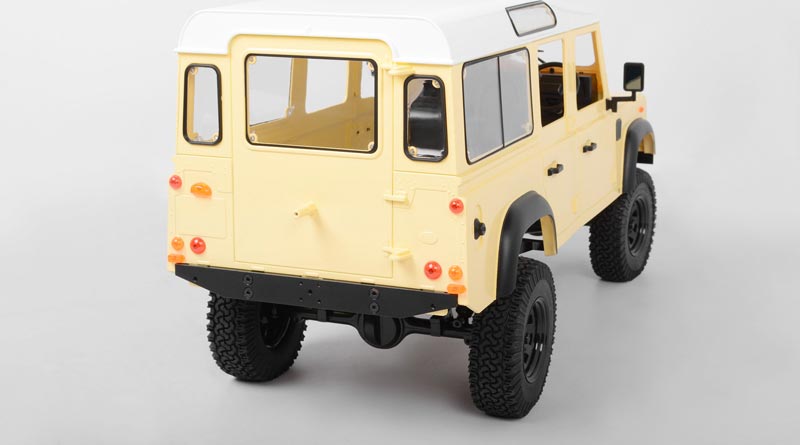

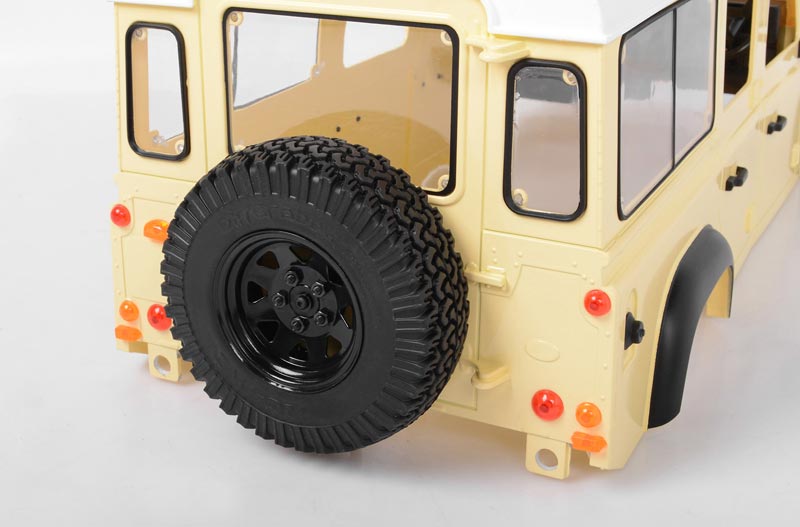

The crisp lines and subtle details are all captured. Black plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.

ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

The G2 features the popular RC4WD Outcry II Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Featuring a massive 153oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance you need when the turning gets tough
