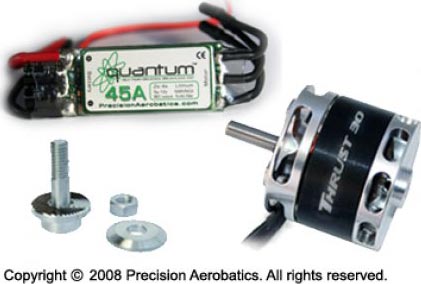

T30 Power System - Thrust 30/Quantum 45A/Prop Adapter
click to enlarge
- Thrust® 30 Motor with RotorKool® technology
- Quantum brushless ESC 45A
- Pre-soldered bullet connectors
- CNC Machined Precision Aerobatics prop adapter (made for PA in Germany)
Thrust® motor is one of the coolest running high performance, high-torque and high efficiency brushless motor ever produced to date. The design incorporates our latest innovation, RotorKool® which keeps the stator core material, the low resistance windings, highly permeable stator plates, high quality NMB Japan triple bearings and powerful neodymium magnets at optimum operating temperatures regardless of duration or the number of consecutive flights made*.
*provided sufficient airflow is permitted.
Weight: 104g (ex bullet connectors)
Shaft diameter: 5mm
KV rating: 905kv
ESC required: PA Quantum 45A
Recommended Prop size: 11x5.5, 12x6, 13x6.5
The PA Quantum 45 is a performance enhanced Brushless Electronic Speed Controller specifically designed to seamlessly match our Thrust 30®
The PA Quantum ESC’s has 4 high power regulator chips BEC. This BEC specifically designed for extreme aerobatics and therefore has the capability to support the higher momentary peak demand loads to eliminate the possibility of unwanted shutdowns. This high power BEC is also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters. This is especially important when using a 2.4GHz receiver.
CNC machined propeller adapter
It may seem like a minor component installed in your high performance aircraft. However it is extremely important since the prop adapter affects the final thrust and performance of your motor. Most prop adapters on the market are off center creating excessive variations which lead to glue joint in motor-box to come loose. In high end RPM they cause the motor excessive heat thus reduce efficiency and power.
The adapter is CAD designed by Precision Aerobatics and is made in Germany.
