Phantomount X2 Wide C/F 2-Axis Gimbal DJI Phant
click to enlarge

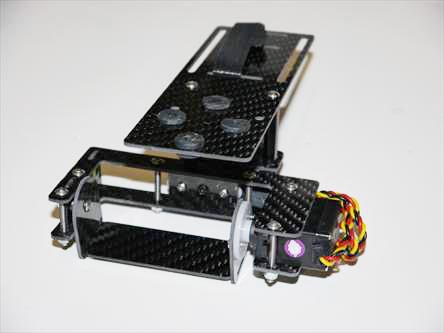

The PhantoMount X2 Phantom gimbal frame and mounting plate is made of 1.5mm carbon fiber. Designed to work on many platforms this gimbal utilizes two HiTec 5245MG Digital Ball Bearing servos (sold separately) directly mounted to both the pitch and roll axis of the camera. This reduces overall weight, moving parts and greatly simplifies the design of the gimbal. Purchase the carbon fiber PhantomFeet and Phantom Skids to raise your Phantom 1" off the ground allowing clearance between the bottom of this gimbal and ground.
Utilizing the Gimbal Stabilization built into the DJI Naza-m flight controller you can directly power and control the gimbal. No additional expensive stabilization controller is needed.
Installation onto your Phantom is easy too. Simply attach the gimbal with two screws included with the hardware and connect to your flight controller. Set up and tune the gimbal in the DJI Assistant Software and film when you fly!
We recommend that you power your PhantoMount X2 gimbal servos through a 6v BEC harness. This will provide smoother reaction and cleaner videos.
**HERO 3 GO PRO CAMERA AND DJI PHANTOM NOT INCLUDED**
Two Mini Servos (HiTec 5245MG)
