ONXM1220

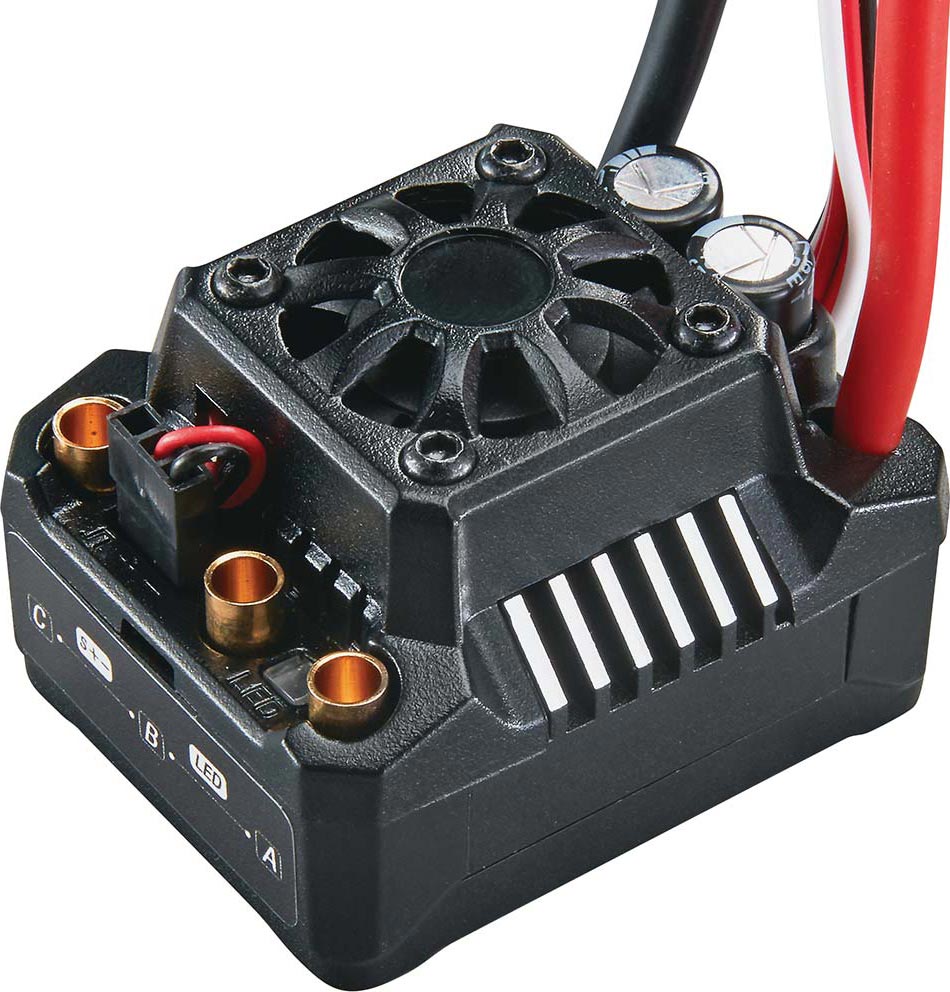

ESC 120A Brushless Programmable Surface

Product Info
ONXM1220
ESC 120A Brushless Programmable Surface
By ONYX
$119.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Car Electronic Speed Controls (ESC)
But only from... ONYX
All items from... ONYX


 Inventory Status Legend
StockStock availability for on-line ordering
3
$119.99
Warehouse ?
StockStock availability for pick up
3
$119.99
Warehouse ?
1
$119.99
Store - Charlottetown ?
2
$124.99
Store - Edmonton ?
2
$119.99
Store - Mississauga ?
2
$119.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Easy programming using the "Set" button
  • Auto cell selection
  • Forward with brake and forward with brake/reverse modes
  • Adjustable drag and maximum brake force
  • Adjustable "punch" setting
  • Smooth acceleration and linear throttle feel
  • Durable, hard cases
  • Waterproof and dustproof
  • Low-voltage cutoff protection
  • Thermal protection
  • Signal loss protection
  • Motor overload protection
  • Built-in cooling fan (except 25A)

Designed for surface use, ONYX 25A to 150A programmable ESCs deliver superior performance affordably and on demand. They’re NiMH and LiPo compatible, making them an ideal match for ONYX batteries. And with their manufacturer's 1-year limited warranty protection, you can buy ONYX ESCs with confidence!

VENDOR TECHNOTES
   **Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: For use with sensorless brushless motors in 1/10 short course trucks
stadium trucks and monster trucks
Water and dust proof under normal operation
Easy to program using set button
Adjustable drag and maximum brake force
Forward with Brake mode and Forward with Brake/Reverse mode
ABS brake
Powerful BEC regulator
Adjustable punch setting
Auto cell selection
Cooling fan
Low voltage cutoff protection for LiPo or NiMH batteries
Thermal and signal loss protection
Motor overload protection

INCLUDES:

SPECS: Input: 2-3S LiPo, 6-12 cell NiMH
Current (Continuous/Burst): 120A/830A
Motor Limit: 3650
BEC: 6V-7.4V/4A
Battery Connector: None
Dimensions (L/W/H): 1.9 x 1.5 x 1.4" (49 x 39.5 x 34.7mm)
Weight: 3.7oz (105g)

jxs 03/23/18
753600112207 0753600112207
ONXM1220
