MDOFS8

FS-8 SkyWriter3D Desktop Mini 3D Printer

Product Info | Replacement Parts
RESOURCES

Replacement Parts (9)
MDOFS8
FS-8 SkyWriter3D Desktop Mini 3D Printer
By MIND 2 MARKET
Discontinued
Click to Enlarge
click to enlarge

More like this... 3D Printers
But only from... MIND 2 MARKET


 Inventory Status Legend
Stock availability for on-line ordering
0
$484.49
Warehouse ?
Stock availability for pick up
0
$484.49
Warehouse ?
0
$484.49
Store - Charlottetown ?
0
$484.49
Store - Edmonton ?
0
$484.49
Store - Mississauga ?
0
$484.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

SkyWriter3D Desktop 3D printer is a fully assembled and ready to go three-dimensional printer/rapid prototyping machine, which turns blueprints or CAD file into real 3 dimensional objects under the control of the computer software.

The SkyWriter3d Desktop 3D Printer is based on the open-source technology. SkyWriter3d features a new built in closed circuit control board. The exclusive industrial designed extrusion system features a high resolution heat extrusion system together with other design details that make this advanced technology machine the best Desktop 3D Printer available at a entry level price. SkyWriter3d’s industrial design achieves high-precision accuracy with high efficiency with stable quality. The SkyWriter3d Desktop 3D Printer is the best choice for small and medium enterprises, or individuals wanting to make professional quality prototype models.

The SKyWriter3d Printer is the perfect tool to be used in education, health care, industrial, art, design, construction, personal preferences and other industries.

The SkyWriter3d Desktop 3D Printer is simple, easy to operate. You can follow the quick start user manual and be 3d printing within minutes. From Mind to Matter, what will you create?


  • 1/2 KG Filament included in kit. Random color.
  • Build Volume X-Y-Z: 150 mm X130 mm X 100 mm
  • Build Volume in inches 5.91” x 5.12” x 3.94”
  • Print Resolution: 0.1-0.4 Microns
  • Print Speed: 80 mm/sec max recommended
  • Filament: 1.75 mm PLA
  • Extruder: direct drive with 0.4 mm nozzle
  • Layer Thickness. .15- .04
  • Auto Leveling – No…
  • Print Bed – NOT heated
  • Print temp. 190c – 225c
  • Construction: powder coated steel with aluminum body
  • Belt: OEM
  • Pulleys: aluminum OEM
  • Electronics: Closed circuit OEM board
  • Direct connect standard printer cable connection
  • Comes with a micro SD card (included) and slot for printing untethered
  • Software: Cura Open source included, millions of free downloads available on WWW.
  • Data import Format.. STL, OBJ, G-Code
  • Operating System. WinXP 7/8, Mac, Linex and UNIX
  • Power Requirements: Voltage 12 v / 10 amps supplied power supply —-
  • Motor: Stepper Motor
  • Overall Printer Footprint: 300mm x 330mm x330mm or 11.81” x 13” x 13”
  • Printer Weight: 6.5 lbs, 2.95 kg





VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

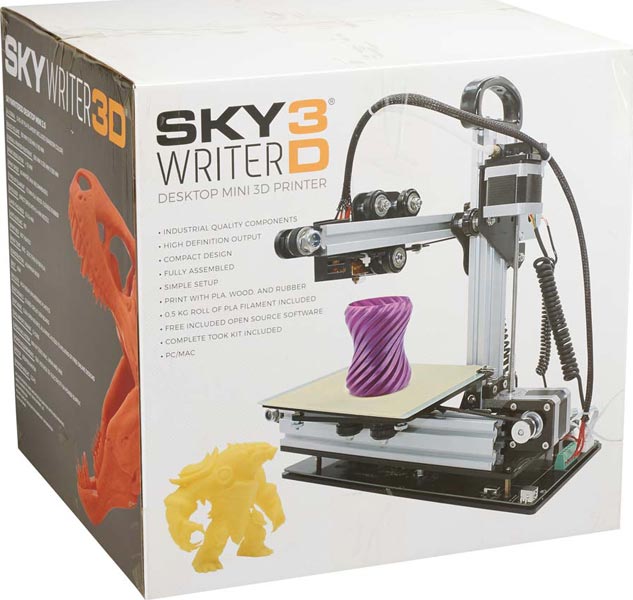

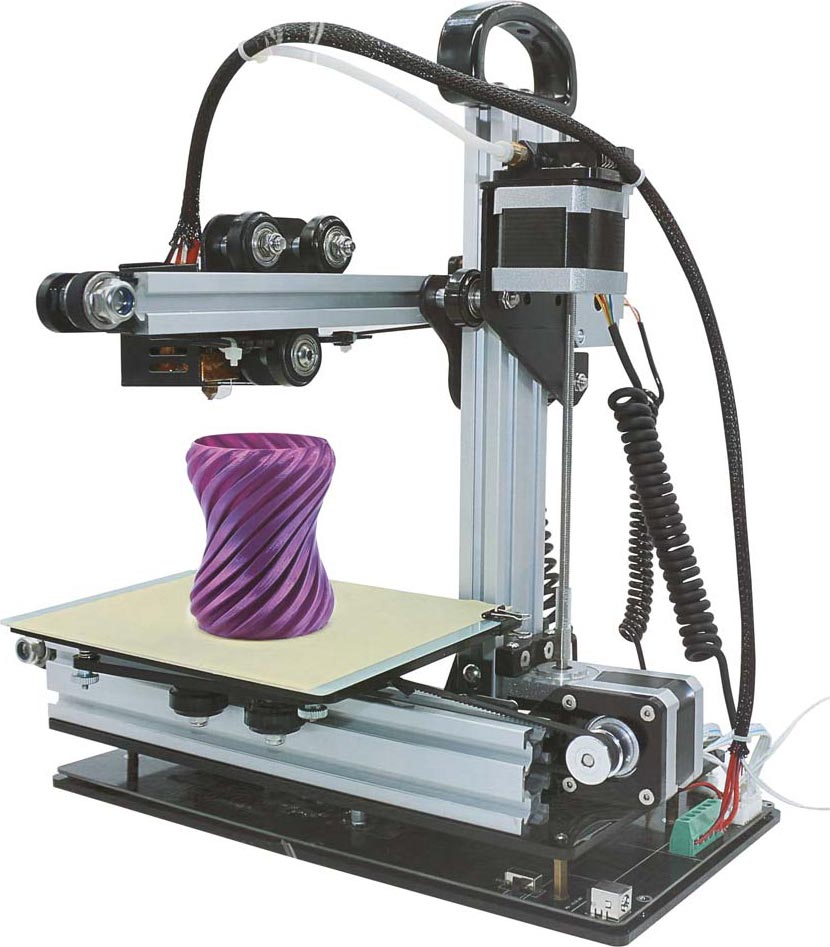

              This is the SkyWriter3D Desktop Mini 3D Printer
from Mind 2 Market.

FEATURES: Light, portable 3D printer
95% pre-assembled, ready to print within a few minutes
Portable, easy to transport, light design
Sturdy, durable construction, designed for years of use
Perfect tool for education, hobbyist or professional use
Free easy to use software comes preloaded on memory card
1,000's of available printable files online, many preloaded
1 year replacement warranty
Print with ABS, PLA, rubber and wood filament
LCD monitor allows you to operate the machine without being hooked
up to a computer
Top-quality stepper motors with belt drive mechanics
Portable SkyWriter 3D Desktop Mini Printer is 95% assembled and
built to last
Includes memory card with free "how-to" software, thousands of
printable files and 1/2 kg filament (color chosen randomly)
Assorted plastic, plastic transparent, plastic glow-in-the-dark,
wood, and flexible rubber filaments are available in multiple
colors and lengths

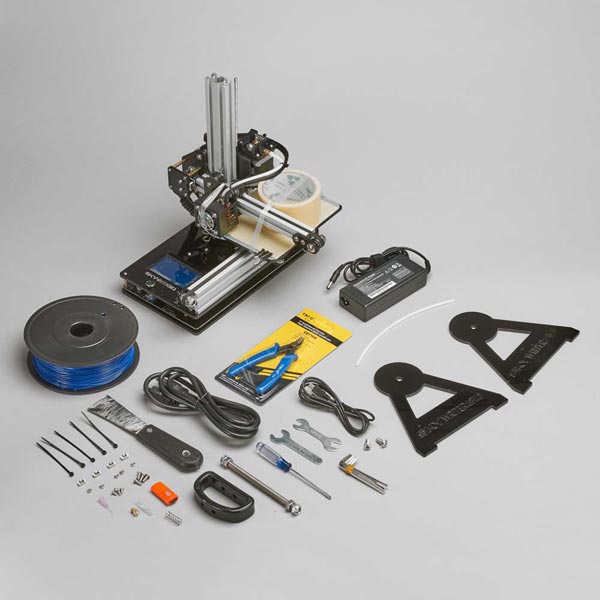

INCLUDES: One SkyWriter3D Desktop Mini 3D Printer

SPECS: Build Volume X-Y-Z: 150mm X 130mm X 100mm

Build volume in inches: 5.91" x 5.12" x 3.94"
Print resolution: 0.1-0.4 Microns
Print speed: 80 mm/sec max recommended
Filament: 1.75 mm PLA
_ Extruder: Direct Drive with 0.4 mm nozzle
Layer thickness: .15 - .04
Auto Leveling: No
Print Bed: NOT heated
Print Temp: 190c - 225c
Construction: powder coated steel with aluminum body
Belt: OEM
Pulleys: aluminum OEM
Electronics: Closed circuit OEM board
Direct connect standard printer cable connection
Comes with a micro SD card (included) and slot for untethered
printing
Software: Cura Open source included, millions of free downloads
available on website
Data import format: STL, OBJ, G-Code
Operating System: WinXP 7/8, Mac, Linux and UNIX
Power Requirements: voltage 12V 10 amps supplied power supply
Motor: Stepper Motor
Overall Printer Footprint: 11.81" x 13" x 13" (300mm x 330mm x330mm)
Printer Weight: 6.5 lbs (2.95kg)

Here are some popular 3D download web sites (most models are free):
grabcad.com/library
thingiverse.com
turbosquid.com
pinshape.com
youmagine.com

Some links for 3D model creation software:

123dapp.com/design
sketchup.com
blender.org
3dslash.net
