HPI106571

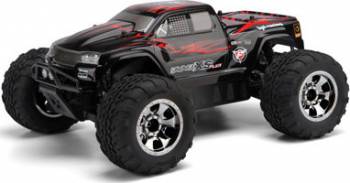

Savage XS Flux 2.4GHz 4WD RTR Waterproof

RESOURCES

Items Required to Complete (3)
Replacement Parts (87)
Optional Items (10)


HPI106571
Savage XS Flux 2.4GHz 4WD RTR Waterproof
By HPI
$339.99 CAD    345.99
Save $6.00 (2%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Monster Trucks
But only from... HPI

 Inventory Status Legend
STOCK
1
On-line - Great Hobbies.com
1
Store - Charlottetown
3
Store - Edmonton
1
Store - Ottawa
2
Store - Mississauga
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
14.1 in
Length:
11 in
Width:
8.8 in
Wheelbase:
4wd
Drivetrain:
2S - 3S Li-Po
Battery Requirements:
HPI TF-40 2.4GHz
Radio Included:
HPI Flux Vektor 4000
Motor Included:
HPI Flux Vapor Pro with reverse
ESC Included:

FEATURES

2.4GHZ Radio System

Controlling the Savage XS Flux is easy with the HPI TF-40 2.4GHz radio system. No need to worry about changing crystals, the radio prevents frequency conflicts automatically. The TF-40 pistol grip transmitter features adjustments for steering trim, throttle trim, steering dual rate, end points, servo reversing switches, low battery indicator, and a 3rd channel for optional accessories. The 3 channel receiver is equipped with a failsafe system for maximum safety.

Waterproof Electronics

The Savage XS Flux has a waterproof receiver box to keep the 2.4GHz receiver protected from the elements for glitch-free operation. A new SF-10W waterproof steering servo and a waterproof VAPOR Pro electronic speed control mean your Savage XS Flux won't be stopped by wet conditions.

Flux Vertor 4000 Motor

The Flux VEKTOR 4000 motor delivers massive power - plenty of juice for instant wheelies and standing backflips! Option pinion gears are available to fine-tune the speed and torque delivery! The brushless design assures maximum performance with nearly no maintenance required.

Li-Po Battery

The Savage Flux XS is designed to use 2S or 3S LiPo packs. The battery box features vents to keep the battery pack cool, and we suggest using an official Deans® zero-loss battery plug to match the plug on the ESC.

Flux Vector Pro ESC

With the capacity to handle 2S and 3S LiPo power, the Flux VAPOR Pro electronic speed control can take anything you can possibly throw at it and keep coming back for more! The VAPOR Pro features an integrated cooling fan to keep it cool in tough conditions. The Flux VAPOR Pro ESC is reversible so you can back out of jams with ease. And for maximum adjustability it's fully programmable with our optional #100573 USB Programming Kit.

All-Metal Geared Transmission

The Savage XS Flux features all-metal transmission gears to make sure that power delivery is uninterrupted and every jolt of power gets from the motor to the tires efficiently and with no worry of damage to the gears. The whole drivetrain runs on ball bearings for optimal efficiency, extra-long runtimes and mega-fast top speeds!

All Terrain Tires

With the aggressive tread of the 2.2" GT2 tires, you can go off-road to on-road with predictable handling. The center tread lines give you stability on paved surfaces while the blocky tread pattern and heavy-duty sidewall teeth provide grip for off-road terrain like dirt, mud, muck, leaves. They're mounted on black chrome 2.2" Warlock wheels for tough monster truck styling.

Compatibility

For maximum hop-up potential, the Savage XS Flux accepts a wide variety of 1/10th scale 2.2" wheels and tires, along with standard 1/10th scale servos, batteries, receivers and electronic speed controllers.


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES
      This is the brushless electric powered, 2.4GHz radio controlled,
ready to run HPI Savage XS Flux Mini Monster Truck.

FEATURES: Chassis: Plastic TVP (twin vertical plate)
Drive: Four wheel shaft
Brushless Motor: HPI Flux Vektor 4000 with aluminum motor plate
Radio: HPI TF-11 2.4GHz with SF10W waterproof steering servo
Electronic Speed Control: HPI Flux Vapor Pro with reverse and
cooling fan, programmable with optional Programming Kit (HPIC0573),
not included
Transmission: All metal gears running on rubber-sealed ball bearings
Differential: Equipped with four machined super heavy duty bevel
gears
Slipper Clutch: Dual pad
Pinion Gear: Constructed of steel 28 tooth, 48 pitch
Drive Gear (spur gear): 49T
Wheels: HPI Warlock, chrome finish, width: 2.2" (56mm), 2.2" (56mm)
diameter
Tires: GT-2 on/off-road with blocky tread pattern and heavy-duty
sidewall teeth, 3.93" (100mm) diameter, 2.3" (60mm) wide
Shocks: Plastic bodied, oil filled
Caster: Adjustable front and rear toe-in, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Body: Trimmed and painted GT2XS
Warranty: Two year limited warranty through HPI beginning at date of
purchase. Warranty valid only in the USA, Canada and South America

INCLUDES: Assembled HPI Savage Flux Mini Monster Truck with Flux Vektor 4000
Brushless Motor, Vapor Pro ESC, HPI 2.4GHz Radio System, SF-10W
Waterproof Steering Servo, Painted & Trimmed Body and Instruction
Manual

REQUIRES: AA Batteries: Eight for transmitter
Battery: 2S or 3S LiPo
Battery Charger: LiPo compatible
Building and track equipment

SPECS: Vehicle-
Length: 14.1" (360mm)
Width: 11" (280mm)
Wheelbase: 8.8" (225mm)
Body-
Length: 13" (330mm)
Width: 5.7" (146mm) at widest point
Height: 3.7 (93mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Fr Uprights 2 DTXC1547
2 5x11mm Fr Gearbox 1 DTXC1547
2 5x11mm Rear Gearbox 1 DTXC1547
2 10x15mm Fr Diff 1 DTXC1595
2 10x15mm Rear Diff 1 DTXC1595
1 10x15mm Center Shaft 1 DTXC1595
2 5x11mm Idler Gear 1 DTXC1547

jxs 08/22/11
updt jxs 02/05/14
