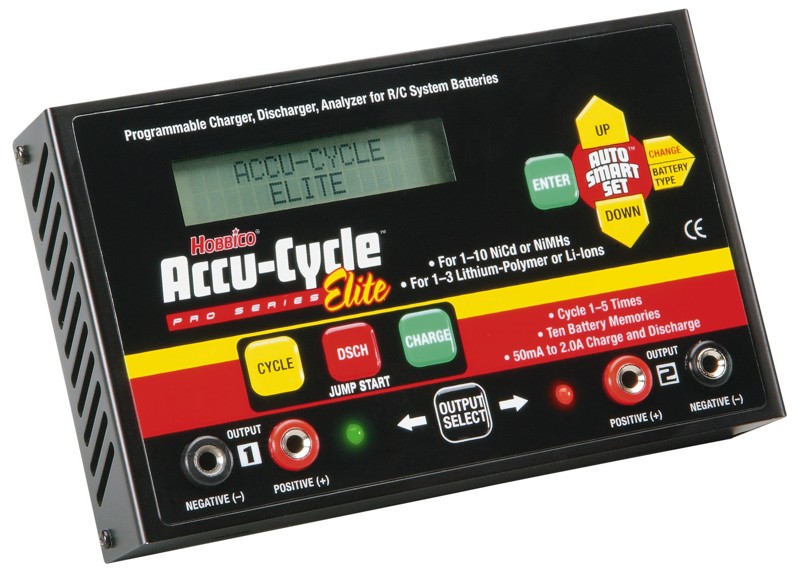

Accu-Cycle Elite Cycler
SPECIFICATIONS
10 to 14½V DC
Input Voltage:1 to 10 Cell NiCd, NiMH, 1 to 3 Cell Li-Ion/Li-Po
Battery Types:0.5A to 2A
Fast Charge Current:NiCd/MH, Li-Po (4.20V/cell max), Li-Ion (4.10V/cel
Fast Charger Termination:5 to 15V per cell adjustable
Peak Detection Sensitivity:Automatically set
Fast Charge Safety Timer:01 to 200 mAh
Trickle Charge current:3 minutes (fixed)
Peak Detection delay:10 minutes
Cycle Delay:0.5A to 2A
Discharge Current:0.8 to 1.2V/cell NiCd & NiMH, 3.0V/cell for Li-Ion
Discharge Cutoff Voltage:1 to 5 (NiCd & NiMH only)
Cycle Count:60 to 130°F (15 to 54°C)
Optional Temperature cutoff:Banana Jacks
Output Connectors:Ten
Battery Memories:2 x 16 Character LCD
Display Type:6.1 x 3.7 x 1.2 in
Case Size:13.2 oz. without AC power supply
Weight:FEATURES
- Designed fro Tx and Rx batteries. Also good for single cell glow ignitors and even lithium-based park flyer batteries!
- Handles 1-10 NiCd or NiMH cells, 1-3 Li-Ion or Li-Po cells
- 12V DC input for portability - can be used at the flight line. 110V AC power supply included for in-home use
- Set battery type, rated voltage and capacity and Auto Mart Set™ feature automatically calculates and set charger current, trickle charge current, fast charge safety time and discharge cutoff voltage
- Two completely independent outputs
- 50-2000mA charge current
- 0-2000mA trickle charge currents (niCd/MH only)
- "Negative deltaV" peak detection with adjustable sensitively for NiCd and NiMH batteries
- "Constant-current/constant-voltage" charge method for Li-Po (4.2V per cell max.) and Li-Ion batteries (4.10V per cell max).
- Fast charge thermal cutoff (requires optional temperature sensor)
- 50-2000mA discharge current
- Adjustable cutoff voltage 0.8-1.2V (3.0V per cell fixed for Lithiums)
- Perform 1 to 5 cycles (NiCd and NiMH only)
- Very simple menu designs and programming flow charts for easy understanding and manual setup
- Configure up to 10 batteries in memory for instant, easy recall and charger setup
- Optional sound cues (on/off)
- Two tri-color LEDs for easy identification of charge/trickle/discharge status (red / amber / green)
- Recall data for 5 full cycles
- Advanced 16x2 LCD with information spelled-out for ease of use and understanding, no cryptic notations
- Displays output voltage, and memories peak and average battery voltages. Constantly updates capacity, battery voltage, current and time during use.
- A sealed membrane touchpad faceplate eliminates the need for conventional switches or dials. Provides rugged durability, sealed to keep out dirt and debris
- Visual and audible warning indicators for improper input voltage, poor connections, unsuitable battery condition, reverse polarity on output
- Safety features include cool-off time delay between cycles, fast charge safety timer, maximum charge voltage per cell, internal heat protection, optional battery temperature monitoring, current overload and reverse polarity protection
