HITHS7965S

Servo - Dig Ultra Speed MG

Product Info | Substitutions | Replacement Parts
HITEC

HITHS7965S

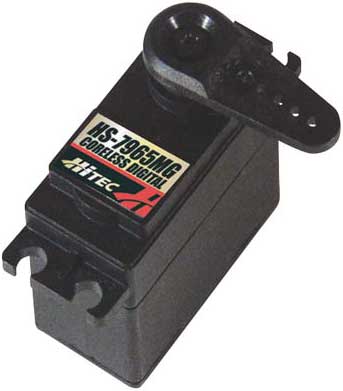

Servo - Dig Ultra Speed MG
By HITEC
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$149.99
Warehouse ?
StockStock availability for pick up
0
$149.99
Warehouse ?
0
$149.99
Store - Stratford ?
0
$149.99
Store - Edmonton ?
0
$149.99
Store - Mississauga ?
0
$149.99
Store - Ottawa ?
0
$149.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
40 x 20 x 37 mm
Dimensions:
111.08 oz-in
Torque @ 4.8V:
138.86 oz-in
Torque @ 6.0V:
0.13 sec/60°
Speed @ 4.8V:
0.10 sec/60°
Speed @ 6.0V:
62 g
Weight:

FEATURES
  • Coreless motor.
  • Metal gears.
  • Dual ball bearings.
  • Water and dust resistant- Not water proof.
  • MOSFET motor drive.
  • Indirect drive pontentiometer.
  • Gold plated contacts.

For use in high performance aircraft up to 1/4 scale, 30 and larger helicopters, and steering and throttle for 1/10th and 1/8th scale cars and trucks.

A note on coreless motors

A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
